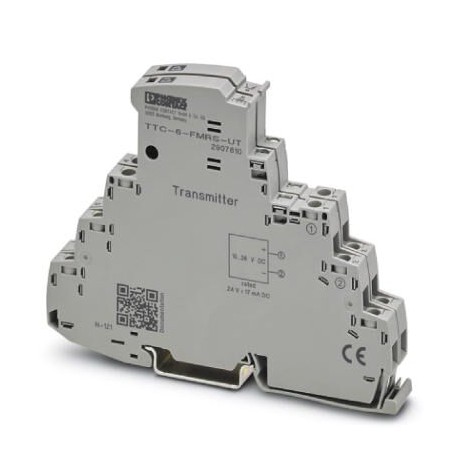

TTC-6-FMRS-UT 2907810 PHOENIX CONTACT Module set for the optical monitoring and floating remote signaling of..
TTC-6-FMRS-UT 2907810 PHOENIX CONTACT Module set for the optical monitoring and floating remote signaling of..
Module set for the optical monitoring and floating remote signaling of neighboring surge protective devices of the TERMITRAB complete product range.
Liên hệ:
Key Commercial Data
| Orderkey | 2907810 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 127 (C-4-2019) |
| GTIN | 4055626244402 |
| Weight per Piece (excluding packing) | 80.000 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Permissible humidity (operation) | 5 % … 95 % |
| Altitude | ≤ 4000 m (amsl (above mean sea level)) |
| Degree of protection | IP20 |
General
| Housing material | PBT |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | traffic grey A RAL 7042 |
| Mounting type | DIN rail: TH 35 – 7.5 mm |
| Type | DIN rail module, one-piece |
Connection data
| Connection method | Screw connection |
|---|---|
| Screw thread | M3 |
| Tightening torque | 0.5 Nm … 0.6 Nm |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section AWG | 24 … 12 |
Remote indication contact
| Switching function | N/C contact |
|---|---|
| Connection method | Screw connection |
| Screw thread | M3 |
| Tightening torque | 0.5 Nm … 0.6 Nm |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section AWG | 24 … 12 |
Supply status indicator / remote signaling
| Operating voltage | 10 V DC … 36 V DC |
|---|---|
| Operating current | 30 mA DC (24 V) |
| 60 mA DC (10 V) |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 4.0 | 27140201 |
|---|---|
| [email protected] 4.1 | 27130801 |
| [email protected] 5.0 | 27130801 |
| [email protected] 5.1 | 27130801 |
| [email protected] 6.0 | 27130800 |
| [email protected] 7.0 | 27130813 |
| [email protected] 8.0 | 27130813 |
| [email protected] 9.0 | 27130813 |
ETIM
| ETIM 2.0 | EC000943 |
|---|---|
| ETIM 3.0 | EC000943 |
| ETIM 4.0 | EC000943 |
| ETIM 5.0 | EC001627 |
| ETIM 6.0 | EC001627 |
| ETIM 7.0 | EC001627 |
