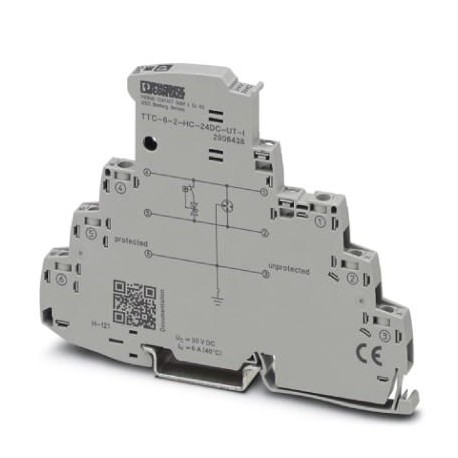

TTC-6-2-HC-24DC-UT-I 2908438 PHOENIX CONTACT Устройство защиты от перенапряжений со встроенным индикатором с..
TTC-6-2-HC-24DC-UT-I 2908438 PHOENIX CONTACT Устройство защиты от перенапряжений со встроенным индикатором с..
Устройство защиты от перенапряжений со встроенным индикатором состояния для 2-проводной сигнальной цепи без потенциала земли с высоким номинальным током.
Liên hệ:
Key Commercial Data
| Orderkey | 2908438 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 137 (C-4-2019) |
| GTIN | 4055626300429 |
| Weight per Piece (excluding packing) | 40.000 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Permissible humidity (operation) | 5 % … 95 % |
| Altitude | ≤ 4000 m (amsl (above mean sea level)) |
| Degree of protection | IP20 |
General
| Housing material | PBT |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | traffic grey A RAL 7042 |
| Mounting type | DIN rail: TH 35 – 7.5 mm |
| Type | DIN rail module, one-piece |
| Direction of action | Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground |
Protective circuit
| IEC test classification | C1 |
|---|---|
| C2 | |
| C3 | |
| D1 | |
| Nominal voltage UN | 24 V DC |
| Maximum continuous voltage UC | 30 V DC |
| 21 V AC | |
| Rated current | 6 A (55 °C) |
| Operating effective current ICat UC | ≤ 5 µA |
| Residual current IPE | ≤ 1 µA |
| Nominal discharge current In(8/20) µs (line-line) | 0.5 kA |
| Nominal discharge current In(8/20) µs (line-earth) | 5 kA |
| Pulse discharge current Iimp(10/350) µs (line-earth) | 0.5 kA |
| Total discharge current Itotal(8/20) µs | 5 kA |
| Voltage protection level Up(line-line) | ≤ 50 V (C1 – 1 kV/500 A) |
| ≤ 45 V (C3 – 25 A) | |
| ≤ 50 V (C3 – 100 A) | |
| Voltage protection level Up(line-earth) | ≤ 1.35 kV (C1 – 1 kV/500 A) |
| ≤ 1.45 kV (C2 – 10 kV / 5 kA) | |
| ≤ 850 V (C3 – 25 A) | |
| ≤ 1.1 kV (C3 – 100 A) | |
| Response time tA(line-line) | ≤ 1 ns |
| Response time tA(line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | typ. 0.3 dB (≤ 300 kHz / 150 Ω) |
| Cut-off frequency fg (3 dB), sym. in 150 Ohm system | typ. 1 MHz |
| Capacity (line-earth) | typ. 2.2 nF |
| Resistance per path | ≤ 100 mΩ |
| Max. required back-up fuse | 6.3 A (FF) |
| Impulse durability (line-line) | C1 – 1 kV / 500 A |
| C3 – 100 A | |
| Impulse durability (line-earth) | C1 – 1 kV / 500 A |
| C2 – 10 kV / 5 kA | |
| C3 – 100 A | |
| D1 – 500 A | |
| Pulse reset time (line-earth) | ≤ 40 ms |
Connection data
| Connection method | Screw connection |
|---|---|
| Screw thread | M3 |
| Tightening torque | 0.5 Nm … 0.6 Nm |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section AWG | 24 … 12 |
Standards and Regulations
| Standards/specifications | IEC 61643-21 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 |
|---|---|
| EN 61643-21 2001 + A1:2009 + A2:2013 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 4.0 | 27140201 |
|---|---|
| [email protected] 4.1 | 27130801 |
| [email protected] 5.0 | 27130801 |
| [email protected] 5.1 | 27130801 |
| [email protected] 6.0 | 27130800 |
| [email protected] 7.0 | 27130807 |
| [email protected] 8.0 | 27130807 |
| [email protected] 9.0 | 27130807 |
ETIM
| ETIM 2.0 | EC000943 |
|---|---|
| ETIM 3.0 | EC000943 |
| ETIM 4.0 | EC000943 |
| ETIM 5.0 | EC000943 |
| ETIM 6.0 | EC000943 |
| ETIM 7.0 | EC000943 |
