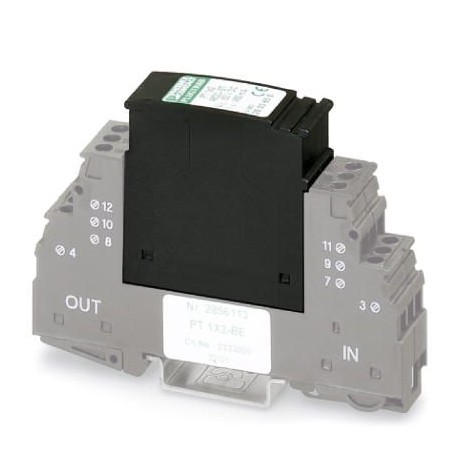

Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| Degree of protection | IP20 |
General
| Housing material | PA 6.6 |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | jet black RAL 9005 |
| Mounting type | on base element |
| Type | Male |
| Number of positions | 2 |
| Direction of action | Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground |
| Arrester can be tested with CHECKMASTER from software version: | From SW rev. 1.00 |
Additional descriptions
| Note | Technical data is valid in association with the following specified base elements: |
|---|---|
| PT 1X2+F-BE 2856126 | |
| PT 1X2-BE 2856113 |
Protective circuit
| IEC test classification | C1 |
|---|---|
| C2 | |
| C3 | |
| D1 | |
| Nominal voltage UN | 12 V AC |
| Maximum continuous voltage UC | 18 V DC |
| 13 V AC | |
| Rated current | 450 mA (45°C) |
| Operating effective current IC at UC | ≤ 5 A |
| Residual current IPE | ≤ 1 µA (with PT 1X2+F-BE) |
| ≤ 2 µA (with PT 1X2-BE) | |
| Nominal discharge current In (8/20) µs (line-line) | 10 kA |
| Nominal discharge current In (8/20) µs (line-earth) | 10 kA |
| Pulse discharge current Iimp (10/350) µs | 2.5 kA |
| Total discharge current Itotal (8/20) µs | 20 kA |
| Max. discharge current Imax (8/20) µs maximum (line-line) | 10 kA |
| Max. discharge current Imax (8/20) µs maximum (line-earth) | 10 kA |
| Nominal pulse current Ian (10/1000) µs (line-line) | 49 A |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 25 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 450 V (with PT 1X2-BE) |
| ≤ 1 kV (with PT 1X2+F-BE) | |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 25 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 25 V (with PT 1X2-BE) |
| ≤ 50 V (with PT 1X2+F-BE) | |
| Residual voltage at In (line-line) | ≤ 25 V |
| Residual voltage with Ian (10/1000) µs (line-line) | ≤ 31 V |
| Voltage protection level Up (line-line) | ≤ 55 V (C2 – 10 kV / 5 kA) |
| Voltage protection level Up (line-earth) | ≤ 450 V (C1 – 1 kV / 500 A with PT 1X2-BE) |
| ≤ 1000 V (C2 – 10 kV / 5 kA with PT 1X2+F-BE) | |
| Voltage protection level Up static (line-line) | ≤ 25 V (C2 – 10 kV / 5 kA) |
| Voltage protection level Up static (line-earth) | ≤ 50 V (C2 – 10 kV / 5 kA with PT 1X2-BE) |
| ≤ 100 V (C2 – 10 kV / 5 kA with PT 1X2+F-BE) | |
| Response time tA (line-line) | ≤ 1 ns |
| Response time tA (line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | typ. 0.5 dB (≤ 700 kHz / 50 Ω) |
| typ. 0.2 dB (≤ 250 kHz / 150 Ω) | |
| typ. 0.1 dB (≤ 60 kHz / 600 Ω) | |
| Cut-off frequency fg (3 dB), sym. in 50 Ohm system | typ. 4 MHz |
| Cut-off frequency fg (3 dB), sym. in 150 Ohm system | typ. 1.5 MHz |
| Cut-off frequency fg (3 dB), sym. in 600 Ohm system | typ. 400 kHz |
| Capacity (line-line) | typ. 2.5 nF |
| Capacity (line-earth) | typ. 4 pF (with PT 1X2-BE) |
| typ. 2 pF (with PT 1X2+F-BE) | |
| Resistance in series | 2.2 Ω ±10 % |
| Surge protection fault message | none |
| Max. required back-up fuse | 500 mA (T) |
| Impulse durability (line-line) | C2 – 10 kV/5 kA |
| C3 – 49 A | |
| Impulse durability (line-earth) | C1 – 1 kV/500 A |
| C2 – 10 kV/5 kA | |
| D1 – 2.5 kA |
