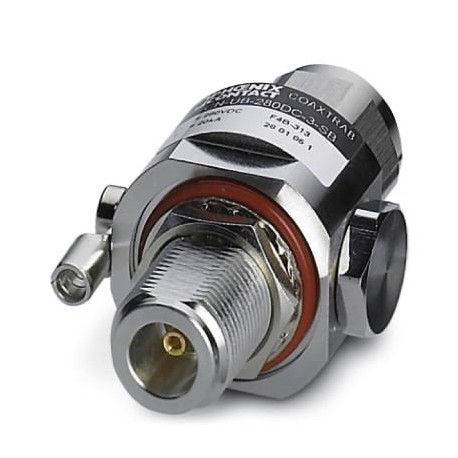

Key Commercial Data
| Orderkey | 2801051 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 176 (C-4-2017) |
| GTIN | 4046356675734 |
| Weight per Piece (excluding packing) | 145.000 g |
| Custom tariff number | 85363010 |
| Country of origin | CN (China) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 80 °C |
|---|---|
| Altitude | 2000 m |
| Degree of protection | IP55 |
General
| Housing material | HPb59-1 |
|---|---|
| Color | nickel |
| Standards for cearances and creepage distances | IEC 60664-1 |
| Mounting type | Connection-specific intermediate plugging |
| Type | Attachment plug |
| Number of positions | 1 |
| Direction of action | Line-Shield/Earth Ground |
Protective circuit
| IEC test classification | C2 |
|---|---|
| C3 | |
| D1 | |
| Maximum continuous voltage UC | 280 V DC |
| Maximum continuous voltage UC(line-earth) | 280 V DC |
| Rated current | 5 A (25 °C) |
| Operating effective current ICat UC | ≤ 1 µA |
| Nominal discharge current In(8/20) µs | 20 kA |
| Nominal discharge current In(8/20) µs (line-earth) | 20 kA |
| Nominal discharge current In(8/20) µs (line-shield) | 20 kA |
| Total surge current (10/350) µs | 2.5 kA |
| Total discharge current Itotal(8/20) µs | 20 kA |
| Max. discharge current Imax(8/20) µs | 20 kA |
| Max. discharge current Imax(8/20) µs maximum (line-earth) | 20 kA |
| Max. discharge current Imax(8/20) µs maximum (line-shield) | 20 kA |
| Nominal pulse current Ian (10/1000) µs (Core-Shield) | 100 A |
| Impulse discharge current (10/350) µs, peak value limp | 2.5 kA |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 900 V |
| Output voltage limitation at 1 kV/µs (line-shield) spike | ≤ 900 V |
| Voltage protection level Up(line-earth) | ≤ 1.1 kV (C2 – 10 kV / 5 kA) |
| ≤ 900 V (C1 – 1 kV/500 A) | |
| Voltage protection level Up(line-shield) | ≤ 1.1 kV (C2 – 10 kV / 5 kA) |
| ≤ 900 V (C1 – 1 kV/500 A) | |
| Response time tA(line-earth) | ≤ 100 ns |
| Response time tA (line-shield) | ≤ 100 ns |
| Input attenuation aE, asym. | typ. 0.1 dB (≤ 3 GHz) |
| Cut-off frequency fg (3 dB), asym. (shield) in 50 Ohm system | > 3 GHz |
| Frequency range | 0 Hz … 3 GHz |
| Standing wave ratio SWR in a 50 Ω system | typ. 1.15 (≤ 3 GHz) |
| max. 1.2 | |
| Permissible HF power Pmaxat VSWR = xx (50 ohm system) | 700 W (VSWR = 1.1) |
| 200 W (VSWR = ∞) | |
| Capacity (line-earth) | typ. 1.5 pF |
| Capacity asymmetrical (shield) | typ. 1.5 pF |
| Surge protection fault message | none |
| Impulse durability (line-earth) | C2 – 10 kV/5 kA |
| C3 – 100 A | |
| D1 – 2.5 kA |
Connection data
| Connection method | N connector 50 Ω |
|---|---|
| Connection method IN | N connector, male |
| Connection method OUT | N connector, female |
