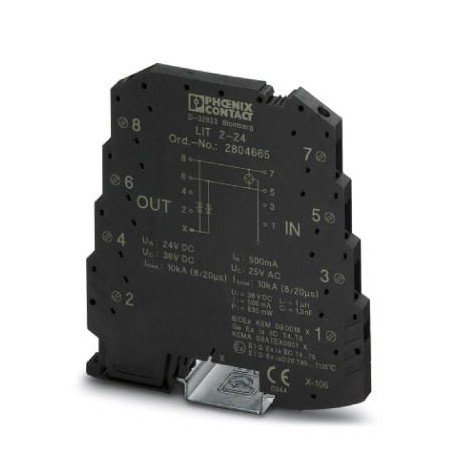

Key Commercial Data
| Orderkey | 2804665 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 92 (C-6-2013) |
| GTIN | 4046356428323 |
| Weight per Piece (excluding packing) | 52.000 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 80 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| Degree of protection | IP20 |
General
| Housing material | PBT |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | anthracite grey RAL 7016 |
| Mounting type | DIN rail: 35 mm |
| Type | DIN rail module, one-piece |
| Direction of action | Line-Line & Line-Earth Ground |
Protective circuit
| IEC test classification | C1 |
|---|---|
| C2 | |
| C3 | |
| D1 | |
| Nominal voltage UN | 24 V DC |
| Maximum continuous voltage UC | 36 V DC |
| 25 V AC | |
| Rated current | 500 mA (40° C) |
| Operating effective current ICat UC | ≤ 2 µA |
| Residual current IPE | ≤ 2 µA |
| Nominal discharge current In(8/20) µs (line-line) | 250 A |
| Nominal discharge current In(8/20) µs (line-earth) | 5 kA |
| Pulse discharge current Iimp(10/350) µs (line-earth) | 500 A |
| 1 kA (in total) | |
| Total discharge current Itotal(8/20) µs | 10 kA |
| 20 kA (1x) | |
| Max. discharge current Imax(8/20) µs maximum (line-line) | 250 A |
| Max. discharge current Imax(8/20) µs maximum (line-earth) | 10 kA |
| 20 kA (in total) | |
| Nominal pulse current Ian (10/1000) µs (line-line) | 50 A |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 50 A |
| 100 A (in total) | |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 60 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 650 V |
| Residual voltage at In(line-line) | ≤ 60 V |
| Residual voltage with Ian (10/1000) µs (line-line) | ≤ 60 V |
| Voltage protection level Up(line-line) | ≤ 60 V (C1 – 500 V / 250 A) |
| ≤ 55 V (C3 – 10 A) | |
| ≤ 55 V (C3 – 50 A) | |
| Voltage protection level Up(line-earth) | ≤ 650 V (C1 – 500 V / 250 A) |
| ≤ 650 V (C2 – 10 kV / 5 kA) | |
| ≤ 650 V (C3 – 10 A) | |
| ≤ 700 V (C3 – 50 A) | |
| ≤ 700 V (D1 – 500 A) | |
| Response time tA(line-line) | ≤ 1 ns |
| Response time tA(line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | typ. 0.3 dB (2.4 MHz/50 Ω) |
| typ. 0.3 dB (700 kHz / 150 Ω) | |
| Cut-off frequency fg (3 dB), sym. in 50 Ohm system | typ. 7.7 MHz |
| Cut-off frequency fg (3 dB), sym. in 150 Ohm system | typ. 2.5 MHz |
| Capacity | ≤ 1.3 nF (per path) |
| Resistance in series | 0 Ω |
| Surge protection fault message | none |
| Max. required back-up fuse | 500 mA (T) |
| Impulse durability (line-line) | C1 – 500 V / 250 A |
| C3 – 50 A | |
| Impulse durability (line-earth) | C1 – 500 V / 250 A |
| C2 – 10 kV/5 kA | |
| C3 – 50 A | |
| D1 – 500 A | |
| Alternating current carrying capacity (line-earth) | 5 A – 1 s |
Connection data
| Connection method | Screw connection |
|---|---|
| Screw thread | M3 |
| Tightening torque | 0.8 Nm |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section solid | 0.2 mm² … 2.5 mm² |
| Conductor cross section AWG | 24 … 14 |
