Key Commercial Data
| Orderkey | 2800021 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 178 (C-4-2017) |
| GTIN | 4046356367943 |
| Weight per Piece (excluding packing) | 187.700 g |
| Custom tariff number | 85363010 |
| Country of origin | US (United States) |
General
| Housing material | Brass (CuZn) |
|---|---|
| Color | nickel |
| Mounting type | Connection-specific intermediate plugging |

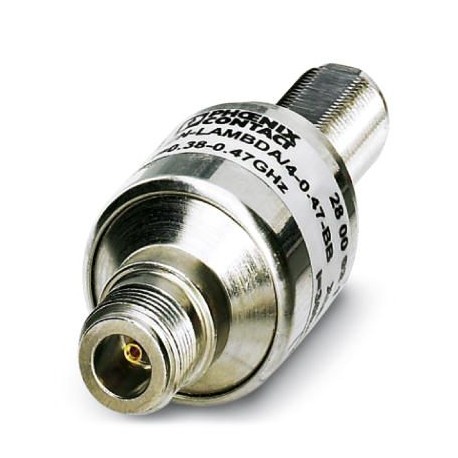

| Type | Attachment plug |
| Number of positions | 1 |
| Direction of action | Line-Shield/Earth Ground |
Protective circuit
| IEC test classification | C2 |
|---|---|
| C3 | |
| D1 | |
| VDE requirement class | C2 |
| C3 | |
| D1 | |
| Rated current | 5 A (25 °C) |
| Nominal discharge current In(8/20) µs (line-earth) | 20 kA |
| Nominal discharge current In(8/20) µs (line-shield) | 20 kA |
| Pulse discharge current Iimp(10/350) µs | ≤ 15 kA |
| Total discharge current Itotal(8/20) µs | 30 kA |
| Total discharge current Itotal(10/350) µs | 15 kA |
| Max. discharge current Imax(8/20) µs maximum (line-earth) | 30 kA |
| Max. discharge current Imax(8/20) µs maximum (line-shield) | 30 kA |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 55 V (6 kV / 3 kA) |
| Output voltage limitation at 1 kV/µs (line-shield) spike | ≤ 55 V (6 kV / 3 kA) |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 55 V (6 kV / 3 kA) |
| Output voltage limitation at 1 kV/µs (line-shield) static | ≤ 55 V (6 kV / 3 kA) |
| Voltage protection level Up(line-earth) | ≤ 95 V (C2 – 10 kV / 5 kA) |
| Voltage protection level Up(line-shield) | ≤ 95 V (C2 – 10 kV / 5 kA) |
| Input attenuation aE, asym. | typ. 0.05 dB (≤ 0.10 dB) |
| Frequency range | 380 MHz … 470 MHz |
| Standing wave ratio SWR in a 50 Ω system | typ. 1.05 (≤ 1,15) |
| Permissible HF power Pmaxat VSWR = xx (50 ohm system) | ≤ 800 W |
| ≤ 4 kW (peak) | |
| Surge protection fault message | none |
| Impulse durability (line-earth) | C2 – 10 kV/5 kA |
| D1 – 2.5 kA | |
| Impulse durability (line-shield) | C2 – 10 kV/5 kA |
| D1 – 2.5 kA |
Connection data
| Connection method | N Connector |
|---|---|
| Connection method IN | N connector, female |
| Connection method OUT | N connector, female |
