Key Commercial Data
| Orderkey | 1653948 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 452 (C-2-2017) |
| GTIN | 4017918970277 |
| Weight per Piece (excluding packing) | 314.400 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -20 °C … 60 °C (cable, fixed installation) |
| 0 °C … 50 °C (cable, flexible installation) |
General data
| Number of positions | 4 |
|---|---|
| Degree of pollution | 2 |

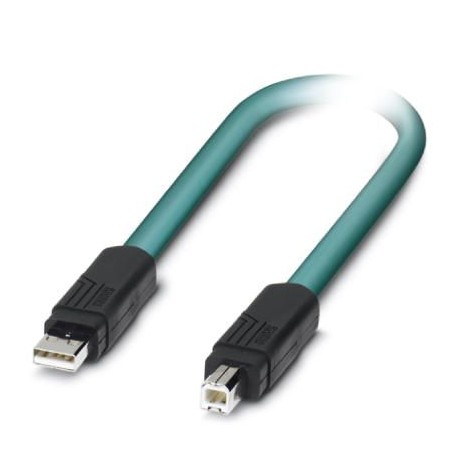

| Alternative short product description | USB cable |
| Rated voltage (III/3) | 125 V |
| Housing material | PA |
Cable
| Cable type | FireWire |
|---|---|
| Cable type (abbreviation) | 980 |
| Signal type/category | USB CAT7, 480 Mbps |
| FireWire CAT7, 400 Mbps | |
| Cable structure | 2x2xAWG26/7 + 2xAWG20/19; S/FTP |
| Conductor cross section | 2x 2x 0.14 mm² (Signal line) |
| 2x 0.5 mm² (Power supply) | |
| AWG signal line | 26 |
| AWG power supply | 20 |
| Conductor structure signal line | 7x 0.15 mm |
| Conductor structure, voltage supply | 19x 0.20 mm |
| Core diameter including insulation | ≤ 1.05 mm (Signal line) |
| nom. 1.4 mm (Power supply) | |
| Wire colors | White-blue, white-orange, white, black |
| Twisted pairs | 2 cores to the pair |
| Type of pair shielding | Aluminum-lined polyester foil |
| Overall twist | Two pairs and two power supply wires to the core |
| Shielding | Tinned copper braided shield |
| External sheath, color | water blue RAL 5021 |
| External cable diameter D | 6.7 mm |
| Minimum bending radius, fixed installation | 5 x D |
| Minimum bending radius, flexible installation | 5 x D |
| Tensile strength GRP | ≤ 30 N |
| Cable weight | 59 kg/km |
| Outer sheath, material | PUR |
| Material conductor insulation | Cell PE (Signal line) |
| PVC (Power supply) | |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | 5 GΩ*km |
| Conductor resistance | 150 Ω/km |
| Working capacitance | 42 pF (per meter) |
| Wave impedance | 100 Ω ±5 % (at 100 MHz) |
| Signal speed | 0.72 c |
| Signal runtime | 4.6 ns/m |
| Shield attenuation | 60 dB (up to 1000 MHz) |
| Interference suppression | 90 dB (up to 1000 MHz) |
| Coupling resistance | 5.00 mΩ/m (at 10 MHz) |
| Nominal voltage, cable | ≤ 125 V |
| Test voltage, cable | 1000 V |
| Special properties | Free of substances which would hinder coating with paint or varnish |
| Flame resistance | complying with IEC 60332-2-2 |
| Resistance to oil | according to EN 60811-2-1 |
| Other resistance | Microbe resistance as per DIN VDE 0282 |
| Hydrolysis resistance as per DIN 53504 | |
| Ambient temperature (operation) | -40 °C … 70 °C (cable, fixed installation) |
| -10 °C … 50 °C (cable, flexible installation) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
