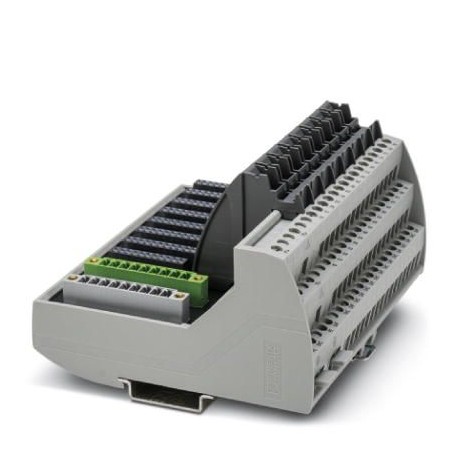

Key Commercial Data
| Orderkey | 2906596 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 553 (C-5-2017) |
| GTIN | 4055626184616 |
| Weight per Piece (excluding packing) | 406.700 g |
| Custom tariff number | 85366990 |
| Country of origin | US (United States) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 75 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 75 °C |
General
| Max. operating voltage Umax | 30 V DC (P2 and field terminals) |
|---|---|
| Max. operating voltage | 30 V DC (P2 and field terminals) |
| 230 V AC (P2 and field terminals) | |
| 30 V DC (P1 terminals) | |
| 30 V (X30 and X31 connectors) | |
| Max. perm. current (per branch) | 3 A (field signal) |
| 1 A (control contacts) | |
| Max. permissible current | 15 A () |
| Max. permissible total current | 15 A (per module) |
| Status display | No |
| Mounting position | As desired on 35 mm DIN rail in acc. with EN 60715 |
| Degree of protection | IP20 |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection in acc. with standard | IEC / EN |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section AWG | 24 … 12 |
| Torque | 0.5 Nm … 0.6 Nm |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | Pluggable screw connection |
| Number of connections | 2 |
| Number of positions | 9 |
