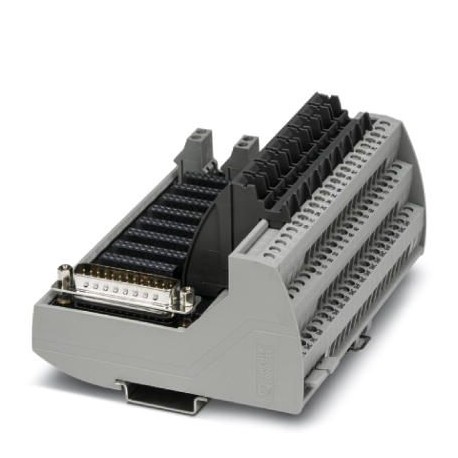

Key Commercial Data
| Orderkey | 2906595 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 552 (C-5-2017) |
| GTIN | 4055626184609 |
| Weight per Piece (excluding packing) | 396.400 g |
| Custom tariff number | 85366990 |
| Country of origin | US (United States) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 75 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 75 °C |
General
| Max. operating voltage Umax | 30 V DC (field terminals) |
|---|---|
| Max. operating voltage | 30 V DC (field terminals) |
| 230 V AC (field terminals) | |
| 30 V DC (A and B terminals) | |
| 30 V DC (D-SUB 25 connector) | |
| Max. perm. current (per branch) | 3 A (field signal) |
| 1 A (control contacts) | |
| Max. permissible current | 4 A (A and B terminals) |
| Max. permissible total current | 15 A (per module) |
| Status display | No |
| Mounting position | As desired on 35 mm DIN rail in acc. with EN 60715 |
| Degree of protection | IP20 |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection in acc. with standard | IEC / EN |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section AWG | 24 … 12 |
| Torque | 0.5 Nm … 0.6 Nm |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | D-SUB 25 |
| Torque | 0.3 Nm … 0.34 Nm |
| Number of connections | 1 |
| Number of positions | 25 |
