VIP-CAB-FLK50/FR/CC/HF/ 3,0M 1103944 PHOENIX CONTACT Assembled, halogen-free round cable connection 1: IDC/F..
VIP-CAB-FLK50/FR/CC/HF/ 3,0M 1103944 PHOENIX CONTACT Assembled, halogen-free round cable connection 1: IDC/F..

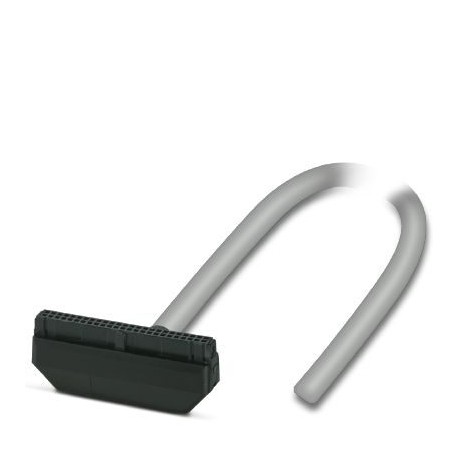

Assembled, halogen-free round cable; connection 1: IDC/FLK socket strip (1x 50-position, 90 °-Out put); connection 2: without (1x 50-position); cable length: 3 m
Liên hệ:
Key Commercial Data
| Orderkey | 1103944 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626969213 |
| Custom tariff number | 85444290 |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 70 °C (fixed installation) |
|---|---|
| -10 °C … 70 °C (flexible installation) | |
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Maximum altitude | ≤ 2000 m |
| Degree of protection | IP20 |
| ≥ IP54 (Installation location) |
General
| Max. permissible operating voltage | 25 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 1 A |
| Length of cable | 3 m |
| External cable diameter | 10.3 mm ±0,3 mm |
| Single wire, cross section | 0.14 mm² |
| Single wire, cross section [AWG] | 26 |
| Single wire, number of litz wires | 7 |
| Single wire, material | Cu tin-plated |
| Wire diameter incl. insulation | 1 mm ±0.03 mm |
| Smallest bending radius, fixed installation | 85 mm |
| Smallest bending radius, movable installation | 159 mm |
| Bending cycles | 5000 (at a radius of ≥ 15x outside diameter) |
| Cable, preassembly | Insulation displacement, IEC 60352-4/DIN EN 60352-4 |
| Shielding | no |
| Cable insulation resistance | ≥ 20 MΩ/km (20 °C) |
| Cable resistance | ≤ 145 Ω/km (20 °C) |
| Outer sheath, material | FR-PE, halogen-free |
| External sheath, color | gray RAL 7035 |
| Nominal operating mode | 100% operating factor |
Connection data 2
| Connection name | Flat-ribbon cable connector |
|---|---|
| Connection in acc. with standard | IEC 60603-13 |
| Connection method | IDC/FLK socket strip |
| Number of connections | 1 |
| Number of positions | 50 |
| Exit angle | 90 ° |
| Insertion/withdrawal cycles | > 50 |
| Pitch | 2.54 mm |
Standards and Regulations
| Flame resistance | IEC 60332-1-2 |
|---|---|
| IEC 60332-3-22 | |
| VDE 0842, Part 332-1-2 | |
| Resistance to oil | against occasional splashes |
| Gasoline resistance | against occasional splashes |
| Designation | Air clearances and creepage distances |
| Standards/regulations | DIN EN 50178 |
| Rated insulation voltage | 63 V |
| Rated surge voltage | 0.6 kV (1.2/50 µs) |
| Insulation | Functional insulation |
| Pollution degree | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
General
| Max. permissible operating voltage | 25 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 1 A |
| Length of cable | 3 m |
| External cable diameter | 10.3 mm ±0,3 mm |
| Single wire, cross section | 0.14 mm² |
| Single wire, cross section [AWG] | 26 |
| Single wire, number of litz wires | 7 |
| Single wire, material | Cu tin-plated |
| Wire diameter incl. insulation | 1 mm ±0.03 mm |
| Smallest bending radius, fixed installation | 85 mm |
| Smallest bending radius, movable installation | 159 mm |
| Bending cycles | 5000 (at a radius of ≥ 15x outside diameter) |
| Cable, preassembly | Insulation displacement, IEC 60352-4/DIN EN 60352-4 |
| Shielding | no |
| Cable insulation resistance | ≥ 20 MΩ/km (20 °C) |
| Cable resistance | ≤ 145 Ω/km (20 °C) |
| Outer sheath, material | FR-PE, halogen-free |
| External sheath, color | gray RAL 7035 |
| Nominal operating mode | 100% operating factor |
