VIP-CAB-FLK40/FS/NA/HF/ 2,0M 1116410 PHOENIX CONTACT Assembled, halogen-free round cable connection 1: IDC/F..
VIP-CAB-FLK40/FS/NA/HF/ 2,0M 1116410 PHOENIX CONTACT Assembled, halogen-free round cable connection 1: IDC/F..

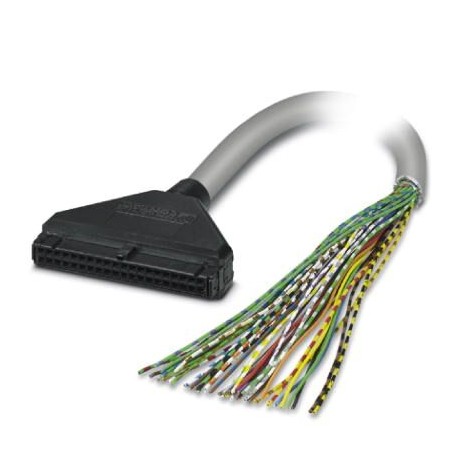

Assembled, halogen-free round cable; connection 1: IDC/FLK socket strip (1x 40-position, 180 °-Out put); connection 2: Single wires (40-position); cable length: 5 m
Liên hệ:
Key Commercial Data
| Orderkey | 1116410 |
|---|---|
| Packing unit | 1 |
| GTIN | 4063151042165 |
| Custom tariff number | 85444290 |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 70 °C (fixed installation) |
|---|---|
| -10 °C … 70 °C (flexible installation) | |
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Maximum altitude | ≤ 2000 m |
| Degree of protection | IP00 |
| ≥ IP54 (Installation location) |
General
| Max. permissible operating voltage | 25 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 1 A (50 °C) |
| 0.6 A (70°C) | |
| Length of cable | 5 m |
| External cable diameter | 9.9 mm ±0,3 mm |
| Single wire, cross section | 0.14 mm² |
| Single wire, cross section [AWG] | 26 |
| Single wire, number of litz wires | 7 |
| Single wire, material | Cu tin-plated |
| Wire diameter incl. insulation | 1 mm ±0.03 mm |
| Smallest bending radius, fixed installation | 82 mm |
| Smallest bending radius, movable installation | 153 mm |
| Bending cycles | 5000 (at a radius of ≥ 15x outside diameter) |
| Cable, preassembly | Insulation displacement, IEC 60352-4/DIN EN 60352-4 |
| Shielding | no |
| Cable insulation resistance | ≥ 20 MΩ/km (20 °C) |
| Cable resistance | ≤ 145 Ω/km (20 °C) |
| Outer sheath, material | FR-PE, halogen-free |
| External sheath, color | gray RAL 7035 |
| Nominal operating mode | 100% operating factor |
Connection data 2
| Connection name | Controller level |
|---|---|
| Connection in acc. with standard | IEC 60603-13 |
| Connection method | IDC/FLK socket strip |
| Number of connections | 1 |
| Number of positions | 40 |
| Exit angle | 180 ° |
| Insertion/withdrawal cycles | > 50 |
| Pitch | 2.54 mm |
Standards and Regulations
| Flame resistance | IEC 60332-1-2 |
|---|---|
| VDE 0842, Part 332-1-2 | |
| IEC 60332-3-22 | |
| Resistance to oil | against occasional splashes |
| Gasoline resistance | against occasional splashes |
| Designation | Air clearances and creepage distances |
| Standards/regulations | DIN EN 50178 |
| Rated insulation voltage | 63 V |
| Rated surge voltage | 0.6 kV |
| Insulation | Functional insulation |
| Pollution degree | 2 |
| Overvoltage category | II |
Color code
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK50 (1) = IDC/FLK50 (1) = black |
|---|---|
| IDC/FLK50 (2) = IDC/FLK50 (2) = brown | |
| IDC/FLK50 (3) = IDC/FLK50 (3) = red | |
| IDC/FLK50 (4) = IDC/FLK50 (4) = orange | |
| IDC/FLK50 (5) = IDC/FLK50 (5) = yellow | |
| IDC/FLK50 (6) = IDC/FLK50 (6) = green | |
| IDC/FLK50 (7) = IDC/FLK50 (7) = blue | |
| IDC/FLK50 (8) = IDC/FLK50 (8) = violet | |
| IDC/FLK50 (9) = IDC/FLK50 (9) = gray | |
| IDC/FLK50 (10) = IDC/FLK50 (10) = white | |
| IDC/FLK50 (11) = IDC/FLK50 (11) = white-black | |
| IDC/FLK50 (12) = IDC/FLK50 (12) = white-brown | |
| IDC/FLK50 (13) = IDC/FLK50 (13) = white-red | |
| IDC/FLK50 (14) = IDC/FLK50 (14) = white-orange | |
| IDC/FLK50 (15) = IDC/FLK50 (15) = white-yellow | |
| IDC/FLK50 (16) = IDC/FLK50 (16) = white-green | |
| IDC/FLK50 (17) = IDC/FLK50 (17) = white-blue | |
| IDC/FLK50 (18) = IDC/FLK50 (18) = white-violet | |
| IDC/FLK50 (19) = IDC/FLK50 (19) = white-gray | |
| IDC/FLK50 (20) = IDC/FLK50 (20) = brown-black | |
| IDC/FLK50 (21) = IDC/FLK50 (21) = brown-red | |
| IDC/FLK50 (22) = IDC/FLK50 (22) = brown-orange | |
| IDC/FLK50 (23) = IDC/FLK50 (23) = brown-yellow | |
| IDC/FLK50 (24) = IDC/FLK50 (24) = brown-green | |
| IDC/FLK50 (25) = IDC/FLK50 (25) = brown-blue | |
| IDC/FLK50 (26) = IDC/FLK50 (26) = brown-violet | |
| IDC/FLK50 (27) = IDC/FLK50 (27) = brown-gray | |
| IDC/FLK50 (28) = IDC/FLK50 (28) = brown-white | |
| IDC/FLK50 (29) = IDC/FLK50 (29) = green-black | |
| IDC/FLK50 (30) = IDC/FLK50 (30) = green-brown | |
| IDC/FLK50 (31) = IDC/FLK50 (31) = green-red | |
| IDC/FLK50 (32) = IDC/FLK50 (32) = green-orange | |
| IDC/FLK50 (33) = IDC/FLK50 (33) = green-blue | |
| IDC/FLK50 (34) = IDC/FLK50 (34) = green-violet | |
| IDC/FLK50 (35) = IDC/FLK50 (35) = green-gray | |
| IDC/FLK50 (36) = IDC/FLK50 (36) = green-white | |
| IDC/FLK50 (37) = IDC/FLK50 (37) = yellow-black | |
| IDC/FLK50 (38) = IDC/FLK50 (38) = yellow-brown | |
| IDC/FLK50 (39) = IDC/FLK50 (39) = yellow-red | |
| IDC/FLK50 (40) = IDC/FLK50 (40) = yellow-orange |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
General
| Max. permissible operating voltage | 25 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 1 A (50 °C) |
| 0.6 A (70°C) | |
| Length of cable | 5 m |
| External cable diameter | 9.9 mm ±0,3 mm |
| Single wire, cross section | 0.14 mm² |
| Single wire, cross section [AWG] | 26 |
| Single wire, number of litz wires | 7 |
| Single wire, material | Cu tin-plated |
| Wire diameter incl. insulation | 1 mm ±0.03 mm |
| Smallest bending radius, fixed installation | 82 mm |
| Smallest bending radius, movable installation | 153 mm |
| Bending cycles | 5000 (at a radius of ≥ 15x outside diameter) |
| Cable, preassembly | Insulation displacement, IEC 60352-4/DIN EN 60352-4 |
| Shielding | no |
| Cable insulation resistance | ≥ 20 MΩ/km (20 °C) |
| Cable resistance | ≤ 145 Ω/km (20 °C) |
| Outer sheath, material | FR-PE, halogen-free |
| External sheath, color | gray RAL 7035 |
| Nominal operating mode | 100% operating factor |
