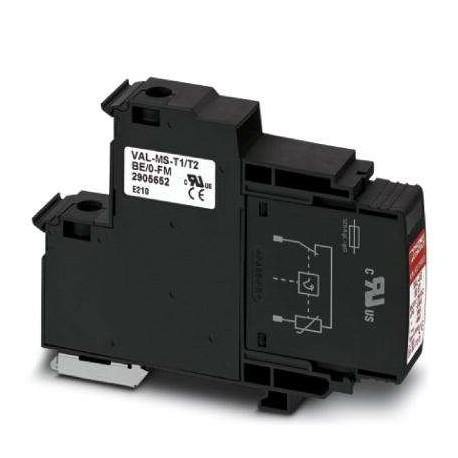

Key Commercial Data
| Orderkey | 2906279 |
|---|---|
| Packing unit | 12 pc |
| Minimum order quantity | 12 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626063041 |
| Weight per Piece (excluding packing) | 124.750 g |
| Custom tariff number | 85363090 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| IP20 (only when all terminal points are used) | |
| Ambient temperature (operation) | -40 °C … 80 °C |
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Altitude | max. 2000 m |
| Permissible humidity (operation) | 5 % … 95 % |
| Shock (operation) | 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (operation) | 5g (10 … 500 Hz / 2.5 h / X, Y, Z) |
General
| IEC test classification | II |
|---|---|
| T2 | |
| EN type | T2 |
| Mode of protection | L-PEN |
| (L+) – (L-) | |
| (L-) – PE | |
| (L+) – PE | |
| Mounting type | DIN rail: 35 mm |
| Color | black |
| Housing material | PBT |
| Degree of pollution | 2 |
| Flammability rating according to UL 94 | V0 |
| Type | DIN rail module, two-section, divisible |
| Number of positions | 1 |
| Surge protection fault message | optical |
Protective circuit
| Nominal voltage UN | 60 V DC |
|---|---|
| -48 V DC (RRH) | |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 75 V AC |
| 100 V DC | |
| Maximum continuous operating voltage UC(L-N) | 75 V AC |
| 100 V DC | |
| Maximum continuous operating voltage UC(L-PEN) | 75 V AC |
| 100 V DC | |
| Rated load current IL | 80 A |
| Residual current IPE | ≤ 0.45 mA |
| Standby power consumption PC | ≤ 35 mVA |
| Nominal discharge current In(8/20) µs | 15 kA |
| Nominal discharge current In(8/20) µs (L-N) | 15 kA |
| Nominal discharge current In(8/20) µs (L-PEN) | 15 kA |
| Maximum discharge current Imax(8/20) µs | 40 kA |
| Maximum discharge current Imax(8/20) µs (L-N) | 40 kA |
| Maximum discharge current Imax(8/20) µs (L-PEN) | 40 kA |
| Short-circuit current rating ISCCR | 25 kA |
| Voltage protection level Up | ≤ 0.55 kV |
| Voltage protection level Up(L-N) | ≤ 0.55 kV |
| Voltage protection level Up(L-PEN) | ≤ 0.55 kV |
| Residual voltage Ures | ≤ 0.55 kV (at In) |
| ≤ 0.425 kV (at 10 kA) | |
| ≤ 0.325 kV (at 5 kA) | |
| ≤ 0.275 kV (at 3 kA) | |
| TOV behavior at UT | 100 V AC (5 s / withstand mode) |
| TOV behavior at UT(L-N) | 100 V AC (5 s / withstand mode) |
| TOV behavior at UT(L-PEN) | 100 V AC (5 s / withstand mode) |
| Response time tA | ≤ 25 ns |
| Response time tA(L-N) | ≤ 25 ns |
| Response time tA(L-PEN) | ≤ 25 ns |
| Max. backup fuse with V-type through wiring | 80 A AC (gG) |
| Max. backup fuse with branch wiring | 125 A AC (gG) |
Connection data
| Connection method | Screw connection |
|---|---|
| Screw thread | M5 |
| Tightening torque | 4.5 Nm |
| 30 lbf-in. (UL) | |
| Stripping length | 16 mm |
| Conductor cross section flexible min. | 1.5 mm² |
| Conductor cross section flexible max. | 25 mm² |
| Conductor cross section solid min. | 1.5 mm² |
| Conductor cross section solid max. | 35 mm² |
| Conductor cross section AWG | 15 … 2 |
| 10 … 2 (UL) | |
| Connection method | Screw connection |
| Screw thread | M5 |
| Tightening torque | 4.5 Nm |
| 30 lbf-in. (UL) | |
| Stripping length | 16 mm |
| Conductor cross section flexible min. | 1.5 mm² |
| Conductor cross section flexible max. | 25 mm² |
| Conductor cross section solid min. | 1.5 mm² |
| Conductor cross section solid max. | 35 mm² |
| Conductor cross section AWG | 15 … 2 |
| 10 … 2 (UL) |
