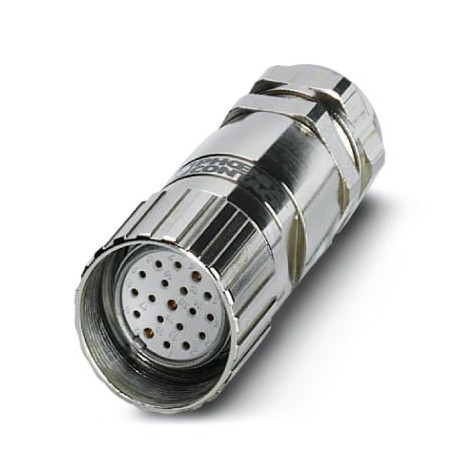

Key Commercial Data
| Orderkey | 1000042 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 128 (PC-2009) |
| GTIN | 4017918399849 |
| Weight per Piece (excluding packing) | 100.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Rated voltage | 150 V |
|---|---|
| Total rated current | 10 A (with 1 mm² conductor cross section) |
| Number of positions | 19 |
| Flammability rating according to UL 94 | V0 |
| Note | The connector is designed for use on sensor/actuator boxes with an M23 plug-in connection. |
Master cable data/connection data
| Connection method | M23 screw locking |
|---|---|
| Conductor cross section max. (signal) | 1 mm² |
| Conductor cross section max. (energy) | 1.5 mm² |
| External cable diameter min. | 10 mm |
| External cable diameter max. | 14 mm |
Insulation material
| Housing material | GD-Zn |
|---|---|
| Housing surface material | Nickel-plated |
| Contact material | CuZn |
| Contact surface material | gold-plated |
| Contact carrier material | PBT |
Connection assignment
| Slot/position = pin = conductor color | 1 / 4 (A) = 15 = WH |
|---|---|
| 1 / 2 (B) = 7 = GY/PK | |
| 2 / 4 (A) = 5 = GN | |
| 2 / 2 (B) = 4 = RD/BU | |
| 3 / 4 (A) = 16 = YE | |
| 3 / 2 (B) = 8 = WH/GN | |
| 4 / 4 (A) = 3 = GY | |
| 4 / 2 (B) = 14 = BN/GN | |
| 5 / 4 (A) = 17 = PK | |
| 5 / 2 (B) = 9 = WH/YE | |
| 6 / 4 (A) = 2 = RD | |
| 6 / 2 (B) = 13 = YE/BN | |
| 7 / 4 (A) = 11 = BK | |
| 7 / 2 (B) = 10 = WH/GY | |
| 8 / 4 (A) = 1 = VT | |
| 8 / 2 (B) = 18 = GY/BN | |
| 1-8 / 1 (+ 120 V) = 19 = BN | |
| 1-8 / 3 (0 V) = 6 = BU | |
| 1-8 / 5 (PE) = 12 = GN/YE |
