UTME 6-SET POWER 3036000 PHOENIX CONTACT Starter kit

UTME 6-SET POWER 3036000 PHOENIX CONTACT Starter kit

UTME 6-SET POWER 3036000 PHOENIX CONTACT Starter kit

Starter kit

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

Mã sản phẩm: 3036000 Danh mục: Modular TBs Thẻ: 3036000, PHOENIX_CONTACT, UTME 6-SET POWER

Mô tả

Key Commercial Data

Orderkey	3036000
Packing unit	1 pc
GTIN	4046356416993
Weight per Piece (excluding packing)	1,000.000 g
Custom tariff number	85369010
Country of origin	DE (Germany)

General

Note	Quantity specifications on the set contents under downloads

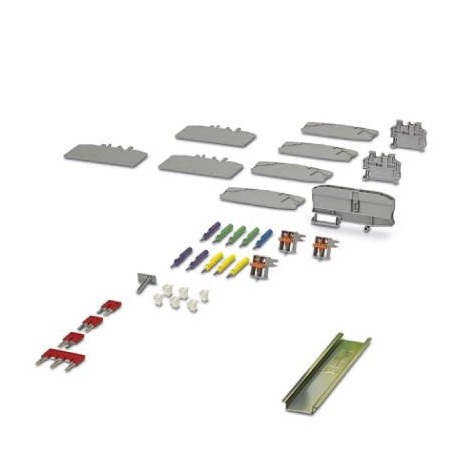

Set consists of	3047400 UTME 6
	3047442 UTMED 6-PE
	3047426 D-UTME 6
	0311139 ATP-URTK/SP
	3034387 CARRIER 35-8
	3034468 SB-ME 2-8
	3030284 FBS 2-8
	3032389 FBS 1/3/5-8
	3032745 PAI-4-FIX YE
	3032758 PAI-4-FIX GN
	3032761 PAI-4-FIX VT
	3032729 PAI-4-FIX BU
	3034439 S-ME 6
	3022276 CLIPFIX 35-5
	0811969 KLM 3
	0819327 UC-EMLP (20X8)
	0818072 UC-TM 8

Dimensions

Width	225 mm
Length	315 mm
Height	65 mm

Connection data

Connection method	Screw connection

Environmental Product Compliance

China RoHS	Environmentally Friendly Use Period = 50
	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration”

Test disconnect terminal block, nom. voltage: 500 V, nominal current: 30 A, connection method: Screw connection, cross section: 0.2 mm² – 10 mm², AWG: 24 – 8, length: 100.8 mm, width: 8.2 mm, color: gray, mounting: NS 35/7,5, NS 35/15, nom. voltage: 500 V

Ground modular terminal block, connection method: Screw connection, number of connections: 2, cross section: 0.2 mm² – 10 mm², AWG: 24 – 8, width: 8.2 mm, color: green-yellow, mounting type: NS 35/7,5, NS 35/15

End cover, length: 100.8 mm, width: 2.2 mm, height: 49.6 mm, color: gray

Partition plate, length: 99 mm, width: 2 mm, height: 64 mm, color: gray

Partition plate, width: 8.2 mm, material: PA, length: 99.8 mm, With storage option for FBS…-8 and PAI 4-FIX, color: gray

Switching jumper, pitch: 8.2 mm, length: 24.7 mm, width: 16.4 mm, number of positions: 2, color: gray/orange

Plug-in bridge, pitch: 8.2 mm, width: 14.7 mm, number of positions: 2, color: red

Plug-in bridge, pitch: 8.2 mm, width: 39.3 mm, number of positions: 5, pin assignment: 1,3,5, color: red

Test adapter, for 4 mm test plug and terminal blocks with 8.2 mm pitch, color: yellow

Test adapter, for 4 mm test plug and terminal blocks with 8.2 mm pitch, color: green

Test adapter, for 4 mm test plug and terminal blocks with 4.2 mm … 8.2 mm pitch, color: violet

Test adapter, for 4 mm test plug and terminal blocks with 8.2 mm pitch, color: blue

Switching lock, length: 12 mm, width: 8.2 mm, color: white

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS…5, FBS…6, KSS 5, KSS 6, width: 5.15 mm, color: gray

Terminal strip marker carrier, height-adjustable, for end brackets CLIPFIX 15, CLIPFIX 35 and CLIPFIX 35-5, can be labeled with BMK…20 x 8 labels, or directly with the M-PEN or X-PEN

Plastic label, Sheet, white, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: adhesive, lettering field size: 20 mm x 8 mm

Marker for terminal blocks, Sheet, white, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: snap into tall marker groove, for terminal block width: 8.2 mm, lettering field size: 7.6 x 10.5 mm
