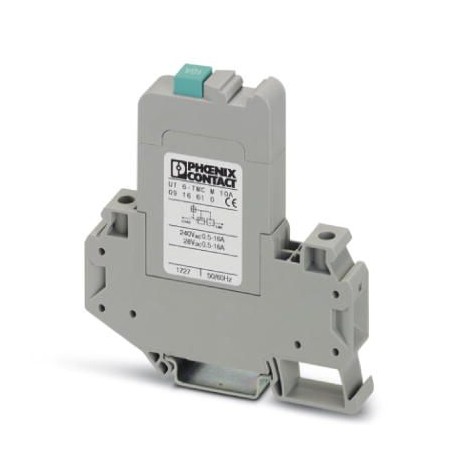

Key Commercial Data
| Orderkey | 0916610 |
|---|---|
| Packing unit | 6 pc |
| Catalog page | Page 332 (C-4-2017) |
| GTIN | 4046356449069 |
| Weight per Piece (excluding packing) | 64.520 g |
| Custom tariff number | 85362010 |
| Country of origin | CZ (Czech Republic) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Mounting type | DIN rail: 35 mm |
| Color | gray |
| Number of positions | 1 |
| Overvoltage category_GRP | II |
| Insulating material | PA66 |
| Flammability rating according to UL 94 | V0 |
Electrical data
| Fuse type | Automatic device |
|---|---|
| Rated surge voltage | 2.8 kV |
| Rated voltage | 240 V AC (50/60 Hz) |
| 28 V DC | |
| 240 V AC (50/60 Hz) | |
| 28 V DC | |
| Operating voltage | 50 V AC … 264 V AC (48 – 62 Hz) |
| 5 V DC … 30.8 V DC | |
| Rated current IN | 10 A |
| Rated insulation voltage Ui | 440 V AC |
| Insulation resistance Riso | > 100 MΩ (main contact) |
| Required backup fuse | 25 A |
| Rated short-circuit switching capacity Icn | 200 A (240 V AC) |
| 400 A (28 V DC) | |
| Dielectric strength | 2000 V |
| Switching cycles, max. | 6000 (at 1 x In) |
| 50 (at 1.5 x In) | |
| 40 (at 6 x In) | |
| Degree of pollution | 2 |
| Overvoltage category_GRP | II |
Ambient conditions
| Ambient temperature (operation) | -30 °C … 60 °C |
|---|---|
| Altitude | 2000 m (acc. to EN 60934) |
| Degree of protection | IP40 (Actuation area) |
| IP20 (Connection area) |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 10 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 10 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 8 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 6 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.25 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 6 mm² |
| 2 conductors with same cross section, solid min. | 0.2 mm² |
| 2 conductors with same cross section, solid max. | 2.5 mm² |
| 2 conductors with same cross section, stranded min. | 0.2 mm² |
| 2 conductors with same cross section, stranded max. | 2.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 0.25 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 1.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 4 mm² |
| Connection method | Screw connection |
| Stripping length | 10 mm |
| Screw thread | M4 |
| Tightening torque, min | 1.5 Nm |
| Tightening torque max | 1.8 Nm |
