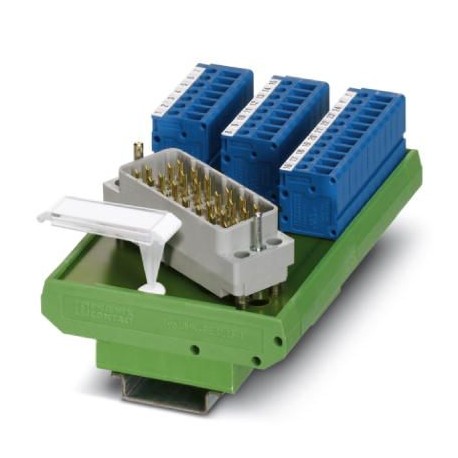

Key Commercial Data
| Orderkey | 2900115 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 581 (C-5-2017) |
| GTIN | 4046356472258 |
| Weight per Piece (excluding packing) | 278.400 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 70 °C |
General
| Note | The coding pins of the ELCO plugs are coded by default in position 6. It is possible to change the coding of the pins without dismounting the module housing. |
|---|---|
| Max. perm. operating voltage | max. 30 V DC (Max. voltage between two intrinsically safe circuits: 60 V DC) |
| Max. perm. current (per branch) | 500 mA |
| Number of positions | 25 |
| Mounting position | any |
| Assembly instructions | To separate intrinsically safe and non-intrinsically safe circuits, a gap of least 50 mm must be created between the connection points, e.g., by means of partition plates or spacing. |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection in acc. with standard | IEC / EN |
| Connection method | Screw connection |
| Stripping length | 9 mm |
| Screw thread | M2,5 |
| Conductor cross section solid | 0.2 mm² … 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section AWG | 24 … 14 |
| Number of positions | 25 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | ELCO connector |
| Coding | 1-1 |
| Number of connections | 1 |
| Number of positions | 25 |
| Note | Pin strip type 8016 (EEx i protection), left |
