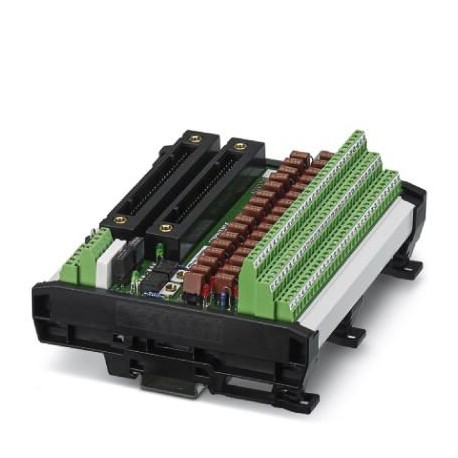

Key Commercial Data
| Orderkey | 2908402 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 519 (C-5-2017) |
| GTIN | 4055626296890 |
| Weight per Piece (excluding packing) | 396.000 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C … 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 80 °C |
General
| Note | Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch. |
|---|---|
| No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC). | |
| Against adjacent modules in the support rail direction at least one functional insulation on the output-side is complied with. If the application has higher requirements on the insulation (basic insulation or reinforced insulation), then these must be realized through suitable measures (e. g. partition plates). | |
| Max. perm. operating voltage | 24 V DC |
| Nominal voltage UN | 19.2 V DC … 26.4 V DC |
| Max. perm. current (per branch) | 250 mA (observe derating) |
| Max. permissible current (all branches) | 2 A (observe derating) |
| Status display | LED red |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
Output data
| Designation | |
|---|---|
| Contact type | 1 N/O contact |
| Type of switch contact | Double contact |
| Contact material | AgNi, 5 µm hard gold-plated |
| Maximum switching voltage | < 25 V AC |
| 48 V DC | |
| Minimum switching voltage | 5 V DC |
| Limiting continuous current | 1 A |
| Min. switching current | 1 mA |
| Interrupting rating (ohmic load) max. | 24 W (24 V DC) |
| 48 W (48 V DC) | |
| 25 VA (25 V AC) | |
| Mechanical service life | approx. 2x 107cycles |
