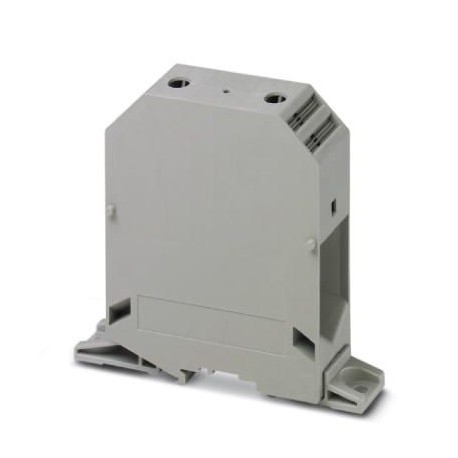

Key Commercial Data
| Orderkey | 3247048 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 267 (C-1-2017) |
| GTIN | 4046356607278 |
| Weight per Piece (excluding packing) | 494.170 g |
| Custom tariff number | 85369010 |
| Country of origin | IN (India) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Potentials | 1 |
| Nominal cross section | 240 mm² |
| Color | gray |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Maximum power dissipation for nominal condition | 13.78 W |
| Maximum load current | 415 A (with 240 mm² conductor cross section) |
| Nominal current IN | 415 A |
| Nominal voltage UN | 1000 V |
| Open side panel | No |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Static insulating material application in cold | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) | Test passed |
| Flame test method (DIN EN 60695-11-10) | V0 |
| Oxygen index (DIN EN ISO 4589-2) | >32 % |
| NF F16-101, NF F10-102 Class I | 2 |
| NF F16-101, NF F10-102 Class F | 2 |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 – HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 – HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 – HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 – HL 3 |
Connection data
| Note | Screws with hexagonal socket |
|---|---|
| Connection method | Screw connection |
| Screw thread | M10 |
| Stripping length | 40 mm |
| Tightening torque, min | 25 Nm |
| Tightening torque max | 30 Nm |
| Connection in acc. with standard | IEC 60947-7-1 |
| Note | Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. |
| Conductor cross section solid min. | 70 mm² |
| Conductor cross section solid max. | 240 mm² |
| Conductor cross section AWG min. | 2/0 |
| Conductor cross section AWG max. | 500 kcmil |
| Conductor cross section flexible min. | 70 mm² |
| Conductor cross section flexible max. | 240 mm² |
| Min. AWG conductor cross section, flexible | 2/0 |
| Max. AWG conductor cross section, flexible | 500 kcmil |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 70 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 185 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 70 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 185 mm² |
| Cross section with insertion bridge, solid max. | 240 mm² |
| Cross section with insertion bridge, stranded max. | 185 mm² |
| 2 conductors with same cross section, solid min. | 35 mm² |
| 2 conductors with same cross section, solid max. | 95 mm² |
| 2 conductors with same cross section, stranded min. | 50 mm² |
| 2 conductors with same cross section, stranded max. | 95 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 35 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 50 mm² |
| Internal cylindrical gage | B15 |
Standards and Regulations
| Connection in acc. with standard | UL |
|---|---|
| IEC 60947-7-1 | |
| Flammability rating according to UL 94 | V0 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 – HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 – HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 – HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 – HL 3 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
