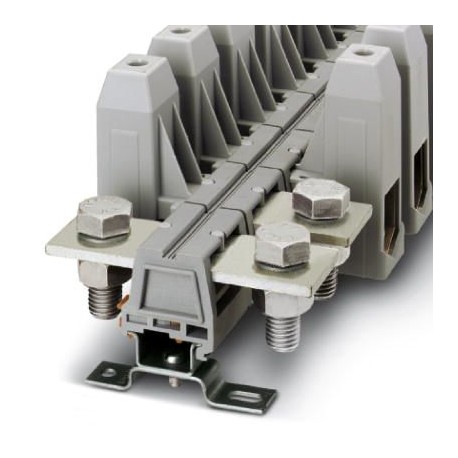

Key Commercial Data
| Orderkey | 2130143 |
|---|---|
| Packing unit | 5 pc |
| Catalog page | Page 555 (C-1-2017) |
| GTIN | 4017918052928 |
| Weight per Piece (excluding packing) | 549.350 g |
| Custom tariff number | 85369010 |
| Country of origin | IN (India) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Nominal cross section | 240 mm² |
| Color | gray |
| Insulating material | PA-F |
| Flammability rating according to UL 94 | V2 |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | II |
| Maximum power dissipation for nominal condition | 13.78 W |
| Connection in acc. with standard | IEC 60947-7-1 |
| Nominal current IN | 415 A |
| Maximum load current | 415 A (with 240 mm² conductor cross section) |
| Nominal voltage UN | 1000 V |
| Connection in acc. with standard | IEC 60947-7-1 |
| Open side panel | No |
Connection data
| Connection method | Bolt connection |
|---|---|
| Note | 2-conductor connection only on terminal sleeve side |
| Conductor cross section solid min. | 70 mm² |
| Conductor cross section solid max. | 240 mm² |
| Conductor cross section flexible min. | 70 mm² |
| Conductor cross section flexible max. | 240 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 70 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 185 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 70 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 185 mm² |
| 2 conductors with same cross section, solid min. | 35 mm² |
| 2 conductors with same cross section, solid max. | 95 mm² |
| 2 conductors with same cross section, stranded min. | 50 mm² |
| 2 conductors with same cross section, stranded max. | 95 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 35 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 50 mm² |
| Cable lug connection according to standard | DIN 46234 |
| Min. cross section for cable lug connection | 25 mm² |
| Max. cross section for cable lug connection | 240 mm² |
| Hole diameter, min. | 17 mm |
| Bolt diameter | 16 mm |
| Screw thread | M16 |
| Tightening torque, min | 30 Nm |
| Tightening torque max | 35 Nm |
| Cable lug connection according to standard | DIN 46235 |
| Min. cross section for cable lug connection | 50 mm² |
| Max. cross section for cable lug connection | 240 mm² |
| Hole diameter, min. | 17 mm |
| Bolt diameter | 16 mm |
| Screw thread | M16 |
| Tightening torque, min | 30 Nm |
| Tightening torque max | 35 Nm |
| Stripping length | 34 mm |
| Screw thread | M16 |
| Tightening torque, min | 30 Nm |
| Tightening torque max | 35 Nm |
| Power rail | 40 mm x 5 mm |
| Connection method | Screw connection |
| Conductor cross section solid min. | 70 mm² |
| Conductor cross section solid max. | 240 mm² |
| Conductor cross section flexible min. | 70 mm² |
| Conductor cross section flexible max. | 240 mm² |
| Conductor cross section AWG min. | 2/0 |
| Conductor cross section AWG max. | 500 kcmil |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 70 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 180 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 70 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 185 mm² |
| 2 conductors with same cross section, solid min. | 35 mm² |
| 2 conductors with same cross section, solid max. | 95 mm² |
| 2 conductors with same cross section, stranded min. | 50 mm² |
| 2 conductors with same cross section, stranded max. | 95 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 35 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 50 mm² |
| Stripping length | 34 mm |
| Screw thread | M10 |
| Tightening torque, min | 25 Nm |
| Tightening torque max | 30 Nm |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| IEC 60947-7-1 | |
| IEC 60947-7-1 | |
| Flammability rating according to UL 94 | V2 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
