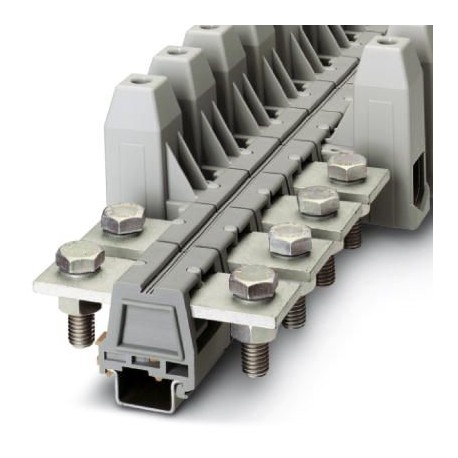

Key Commercial Data
| Orderkey | 2130033 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 555 (C-1-2017) |
| GTIN | 4017918052812 |
| Weight per Piece (excluding packing) | 326.090 g |
| Custom tariff number | 85369010 |
| Country of origin | IN (India) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Nominal cross section | 150 mm² |
| Color | gray |
| Insulating material | PA-F |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | II |
| Maximum power dissipation for nominal condition | 9.55 W |
| Connection in acc. with standard | IEC 60947-7-1 |
| Nominal current IN | 309 A |
| Maximum load current | 309 A (with 150 mm² conductor cross section) |
| Nominal voltage UN | 1000 V |
| Open side panel | No |
| Result of surge voltage test | Test passed |
| Surge voltage test setpoint | 9.8 kV |
| Result of power-frequency withstand voltage test | Test passed |
| Power frequency withstand voltage setpoint | 2.2 kV |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) | Test passed |
| Result of tight fit on support | Test passed |
| Tight fit on carrier | NS 32/NS 35 |
| Setpoint | 15 N |
| Result of voltage-drop test | Test passed |
| Requirements, voltage drop | ≤ 3.2 mV |
| Result of temperature-rise test | Test passed |
| Short circuit stability result | Test passed |
| Conductor cross section short circuit testing | 150 mm² |
| Short-time current | 18 kA |
| Result of thermal test | Test passed |
| Proof of thermal characteristics (needle flame) effective duration | 30 s |
| Relative insulation material temperature index (Elec., UL 746 B) | 120 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Static insulating material application in cold | -40 °C |
Connection data
| Connection method | Bolt connection |
|---|---|
| Conductor cross section solid min. | 50 mm² |
| Conductor cross section solid max. | 150 mm² |
| Conductor cross section flexible min. | 50 mm² |
| Conductor cross section flexible max. | 150 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 50 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 150 mm² |
| Cable lug connection according to standard | DIN 46234 |
| Min. cross section for cable lug connection | 10 mm² |
| Max. cross section for cable lug connection | 150 mm² |
| Hole diameter, min. | 13 mm |
| Cable lug width, max. | 30 mm |
| Bolt diameter | 12 mm |
| Screw thread | M12 |
| Tightening torque, min | 25 Nm |
| Tightening torque max | 30 Nm |
| Cable lug connection according to standard | DIN 46235 |
| Min. cross section for cable lug connection | 25 mm² |
| Max. cross section for cable lug connection | 150 mm² |
| Hole diameter, min. | 13 mm |
| Cable lug width, max. | 34 mm |
| Bolt diameter | 12 mm |
| Screw thread | M12 |
| Tightening torque, min | 25 Nm |
| Tightening torque max | 30 Nm |
| Power rail | 35 mm x 5 mm |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| IEC 60947-7-1 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
