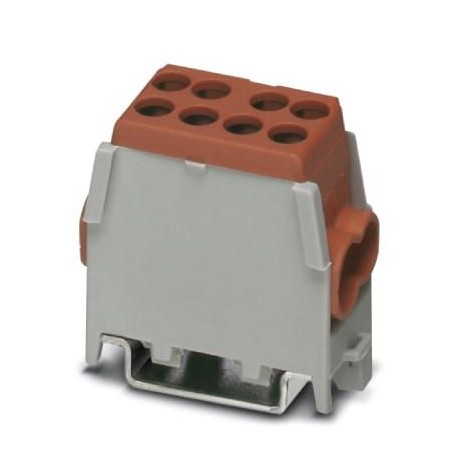

Key Commercial Data
| Orderkey | 3071357 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 562 (C-1-2017) |
| GTIN | 4046356736022 |
| Weight per Piece (excluding packing) | 50.600 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
General
| Number of positions | 1 |
|---|---|
| Number of levels | 1 |
| Number of connections | 4 |
| Potentials | 1 |
| Nominal cross section | 25 mm² |
| Color | brown |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Maximum power dissipation for nominal condition | 3.26 W |
| Maximum load current | 101 A |
| Nominal current IN | 101 A |
| Nominal voltage UN | 400 V (max. 1000 V) |
| Open side panel | No |
Connection data
| Connection method | Screw connection |
|---|---|
| Screw thread | M5/M6 |
| Stripping length | 16 mm |
| Tightening torque, min | 2.2 Nm |
| Tightening torque max | 2.5 Nm |
| Connection in acc. with standard | IEC 60998-1 |
| Note | Use ferrules for stranded conductors |
| Conductor cross section solid min. | 1.5 mm² |
| Conductor cross section solid max. | 25 mm² |
| Conductor cross section AWG min. | 8 |
| Conductor cross section AWG max. | 2 |
| Conductor cross section flexible min. | 10 mm² |
| Conductor cross section flexible max. | 16 mm² |
| Min. AWG conductor cross section, flexible | 8 |
| Max. AWG conductor cross section, flexible | 3 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 16 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 10 mm² |
| Connection method | Screw connection |
| Stripping length | 16 mm |
| Connection in acc. with standard | IEC 60998-1 |
| Tightening torque, min | 1.7 Nm |
| Tightening torque max | 2 Nm |
| Conductor cross section solid min. | 1.5 mm² |
| Conductor cross section solid max. | 16 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 10 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 6 mm² |
Standards and Regulations
| Connection in acc. with standard | IEC 60998-1 |
|---|---|
| IEC 60998-1 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
