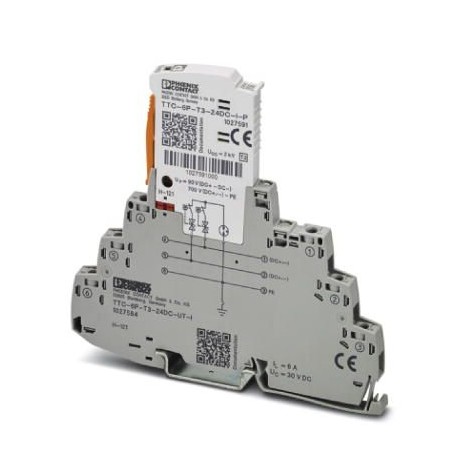

Key Commercial Data
| Orderkey | 1027584 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626522227 |
| Weight per Piece (excluding packing) | 37.400 g |
| Custom tariff number | 85363030 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -40 °C … 80 °C |
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Altitude | ≤ 6000 m (amsl (above mean sea level)) |
| Permissible humidity (operation) | 5 % … 95 % |
| Shock (operation) | 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (operation) | 5g (10 … 150 Hz/20 cycles/axis/X, Y, Z) |
General
| EN type | T3 |
|---|---|
| IEC power supply system | DC |
| Number of ports | One |
| Mode of protection | (DC+) – (DC-) |
| (DC+/DC-) – PE | |
| Mounting type | DIN rail: TH 35 – 7.5 mm |
| Color | traffic grey A RAL 7042 |
| light gray RAL 7035 | |
| Housing material | PBT |
| Degree of pollution | 2 |
| Flammability rating according to UL 94 | V-0 |
| Type | DIN rail module, two-section, divisible |
| Number of positions | 2 |
| Surge protection fault message | optical |
Additional descriptions
| Note | CBM: |
|---|---|
| 2905743 CBM E4 24DC/0.5-10A NO-R | |
| 2905744 CBM E8 24DC/0.5-10A NO-R | |
| CBMC: | |
| 2906032 CBMC E4 24DC/1-10A NO | |
| 2908716 CBMC E4 24DC/1-10A NO-C | |
| 2910411 CBMC E4 24DC/1-10A IOL | |
| PTCB: | |
| 2908262 PTCB E1 24DC/1-8A NO |
Protective circuit
| Nominal voltage UN | 24 V DC |
|---|---|
| Maximum continuous voltage UC | 30 V DC |
| Rated load current IL | 6 A (30 °C) |
| Residual current IPE | ≤ 5 µA |
| Nominal discharge current In(8/20) µs | 1 kA |
| Combination wave UOC | 2 kV (2 Ω) |
| 6 kV (12 Ω) | |
| Voltage protection level Up(DC+) – (DC-) | ≤ 0.09 kV (Uoc= 2 kV) |
| ≤ 0.2 kV (Uoc= 6 kV) | |
| Voltage protection level Up(DC+/DC-) – PE | ≤ 0.7 kV |
| ≤ 1 ns | |
| ≤ 100 ns | |
| Short-circuit current rating ISCCR | 60 A DC (without additional backup fuse) |
| 220 A DC | |
| Max. backup fuse with branch wiring | 6 A (gG) |
| 10 A (see the note: CBM, CBMC, PTCB, CB E1) | |
| Maximum backup fuse for through wiring | 6 A (gG) |
