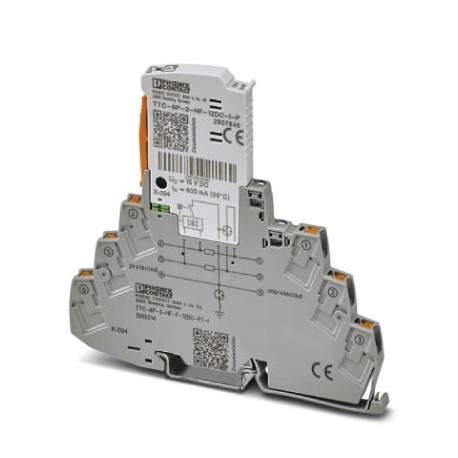

TTC-6P-3-HF-F-12DC-PT-I 1065314 PHOENIX CONTACT Surge protection, consisting of protective plug and base ele..

Surge protection, consisting of protective plug and base element, with integrated status indicator for three signal wires with common reference potential. For HF applications and telecommunications interfaces without supply voltage. Indirect grounding via gas-filled surge arrester.

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 1065314 Danh mục: Trabtech (TT) Thẻ: 1065314, PHOENIX_CONTACT, TTC-6P-3-HF-F-12DC-PT-I

Mô tả

Key Commercial Data

Orderkey	1065314
Packing unit	1 pc
Catalog page	Page 171 (C-4-2019)
GTIN	4055626725789
Weight per Piece (excluding packing)	0.000 g
Custom tariff number	85363010
Country of origin	DE (Germany)

Drawings
Ambient conditions
Protective circuit
Connection data
Environmental Product Compliance

Dimensions
General
Additional technical data
Standards and Regulations
Classifications

Drawings


Diagram		Dimensional drawing

Circuit diagram

Dimensions

Height	105.8 mm
Width	6.2 mm +0.1 mm
Depth	100 mm (incl. DIN rail 7.5 mm)

Ambient conditions

Ambient temperature (operation)	-40 °C … 85 °C
Ambient temperature (storage/transport)	-40 °C … 85 °C
Permissible humidity (operation)	5 % … 95 %
Altitude	≤ 4000 m (amsl (above mean sea level))
Degree of protection	IP20

General

Housing material	PBT
Flammability rating according to UL 94	V-0
Color	traffic grey A RAL 7042
	light grey RAL 7035
Mounting type	DIN rail: TH 35 – 7.5 mm
Type	DIN rail module, two-section, divisible
Direction of action	Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground

Protective circuit

IEC test classification	C1
	C2
	C3
	D1
Nominal voltage U_N	12 V DC
Maximum continuous voltage U_C	15 V DC
	10 V AC
Rated current	600 mA (56 °C)
Operating effective current I_Cat U_C	≤ 100 µA
Residual current I_PE	≤ 1 µA
Nominal discharge current I_n(8/20) µs (line-line)	5 kA
Nominal discharge current I_n(8/20) µs (line-earth)	5 kA
Nominal discharge current I_n(8/20) µs (line-signal ground)	5 kA
Pulse discharge current I_imp(10/350) µs (line-line)	0.5 kA
Pulse discharge current I_imp(10/350) µs (line-earth)	0.5 kA
Pulse discharge current I_imp(10/350) µs (line-signalground)	0.5 kA
Total discharge current I_total(8/20) µs	10 kA
Voltage protection level U_p(line-line)	≤ 145 V (C1 – 1 kV/500 A)
	≤ 260 V (C2 – 10 kV / 5 kA)
	≤ 25 V (C3 – 25 A)
	≤ 30 V (C3 – 100 A)
Voltage protection level U_p(line-earth)	≤ 750 V (C1 – 1 kV/500 A)
	≤ 750 V (C2 – 10 kV / 5 kA)
	≤ 1.1 kV (C3 – 25 A)
	≤ 1.2 kV (C3 – 100 A)
Voltage protection level U_p(line-signalground)	≤ 80 V (C1 – 1 kV/500 A)
	≤ 95 V (C2 – 10 kV / 5 kA)
	≤ 25 V (C3 – 25 A)
	≤ 30 V (C3 – 100 A)
Voltage protection level U_pstatic (line-line)	≤ 40 V (C1 – 1 kV/500 A)
	≤ 95 V (C2 – 10 kV / 5 kA)
Voltage protection level U_pstatic (line-earth)	≤ 40 V (C1 – 1 kV/500 A)
	≤ 95 V (C2 – 10 kV / 5 kA)
Voltage protection level U_pstatic (line-signalground)	≤ 750 V (C1 – 1 kV/500 A)
	≤ 750 V (C2 – 10 kV / 5 kA)
Response time t_A(line-line)	≤ 1 ns
Response time t_A(line-signalground)	≤ 1 ns
Response time t_A(line-earth)	≤ 100 ns
Input attenuation aE, sym.	typ. 0.3 dB (≤ 8.7 MHz / 150 Ω)
Input attenuation aE, asym.	typ. 0.3 dB (≤ 10.5 MHz / 150 Ω)
Cut-off frequency fg (3 dB), sym. in 150 Ohm system	typ. 60 MHz
Cut-off frequency fg (3 dB), asym. (GND) in 150 Ohm system	typ. 60 MHz
Capacity (line-line)	typ. 32 pF
Capacity (line-signalground)	typ. 32 pF
Resistance per path	1.65 Ω ±20 %
Max. required back-up fuse	630 mA (FF)
Impulse durability (line-line)	C1 – 1 kV / 500 A
	C2 – 10 kV / 5 kA
	C3 – 100 A
Impulse durability (line-earth)	C1 – 1 kV / 500 A
	C2 – 10 kV / 5 kA
	C3 – 100 A
	D1 – 500 A
Impulse durability (line-signalground)	C1 – 1 kV / 500 A
	C2 – 10 kV / 5 kA
	C3 – 100 A
	D1 – 500 A
Pulse reset time (line-line)	≤ 30 ms
Pulse reset time (line-earth)	≤ 30 ms
Pulse reset time (line-signalground)	≤ 30 ms

Additional technical data

Max. total discharge current I_{total max}(8/20) µs	20 kA (1x)

Connection data

Connection method	Push-in connection
Stripping length	8 mm
Conductor cross section flexible	0.2 mm² … 2.5 mm²
Conductor cross section solid	0.2 mm² … 4 mm²
Conductor cross section AWG	24 … 12

Standards and Regulations

Standards/specifications	IEC 61643-21 2000 + corrigendum 2001 + A1:2008, modified + A2:2012
	EN 61643-21 2001 + A1:2009 + A2:2013

Environmental Product Compliance

REACh SVHC
	Lead 7439-92-1
China RoHS	Environmentally Friendly Use Period = 50
	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration”

Classifications

[email protected]

[email protected] 6.0	27130800
[email protected] 7.0	27130807
[email protected] 8.0	27130807
[email protected] 9.0	27130807

ETIM

ETIM 5.0	EC000943
ETIM 6.0	EC000943
ETIM 7.0	EC000943
