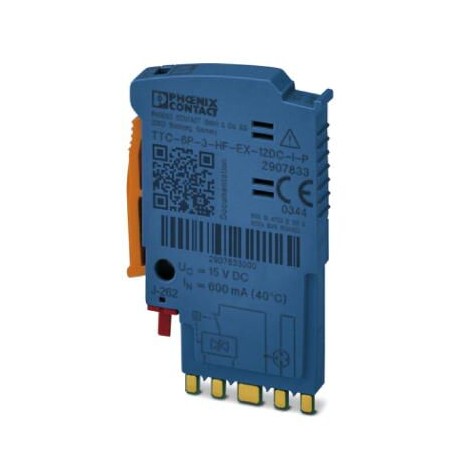

Surge protection plug with integrated status indicator for a 3-wire Ex i signal circuit with common reference potential. For HF applications. Nominal voltage: 12 V DC

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 2907833 Danh mục: Trabtech (TT) Thẻ: 2907833, PHOENIX_CONTACT, TTC-6P-3-HF-EX-12DC-I-P

Mô tả

Key Commercial Data

Orderkey	2907833
Packing unit	1 pc
GTIN	4055626378893
Weight per Piece (excluding packing)	20.000 g
Custom tariff number	85363010
Country of origin	DE (Germany)

Drawings
Ambient conditions
Protective circuit
Standards and Regulations
Classifications

Dimensions
General
Connection data
Environmental Product Compliance

Drawings


Dimensional drawing		Circuit diagram

Dimensions

Height	39 mm
Width	6.2 mm +0.1 mm
Depth	60.3 mm

Ambient conditions

Ambient temperature (operation)	-40 °C … 85 °C
Ambient temperature (storage/transport)	-40 °C … 85 °C
Permissible humidity (operation)	5 % … 95 %
Altitude	≤ 2000 m (amsl (above mean sea level))
Degree of protection	IP20

General

Housing material	PBT
Flammability rating according to UL 94	V-0
Color	sky blue RAL 5015
Mounting type	on base element
Type	Male

Protective circuit

Nominal voltage U_N	12 V DC
Maximum continuous voltage U_C	15 V DC
Rated current	600 mA (40 °C)

Connection data

Connection method	pluggable

Standards and Regulations

Standards/specifications	EN 60079-0 2012 + A11:2013
	EN 60079-11 2012
	EN 61643-21 2001 + A1:2009 + A2:2013
	IEC 60079-0 2011 (modified) + corrigendum 2012 + corrigendum 2013
	IEC 60079-11 2008
	IEC 61643-21 2000 + corrigendum 2001 + A1:2008, modified + A2:2012

Environmental Product Compliance

China RoHS	Environmentally Friendly Use Period = 50
	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration”

Classifications

[email protected]

[email protected] 10.0.1	27130890
[email protected] 6.0	27130800
[email protected] 7.0	27130890
[email protected] 8.0	27130890
[email protected] 9.0	27130890

ETIM

ETIM 5.0	EC002496
ETIM 6.0	EC002497
ETIM 7.0	EC002497

Drawings
Ambient conditions
Protective circuit
Standards and Regulations
Classifications

Dimensions
General
Connection data
Environmental Product Compliance

Drawings


Dimensional drawing		Circuit diagram

Ambient conditions

Ambient temperature (operation)	-40 °C … 85 °C
Ambient temperature (storage/transport)	-40 °C … 85 °C
Permissible humidity (operation)	5 % … 95 %
Altitude	≤ 2000 m (amsl (above mean sea level))
Degree of protection	IP20
