TTC-6P-3-24DC-I-P 1061384 PHOENIX CONTACT Surge protection plug with integrated status indicator on the modu..

TTC-6P-3-24DC-I-P 1061384 PHOENIX CONTACT Surge protection plug with integrated status indicator on the modu..

TTC-6P-3-24DC-I-P 1061384 PHOENIX CONTACT Surge protection plug with integrated status indicator on the modu..

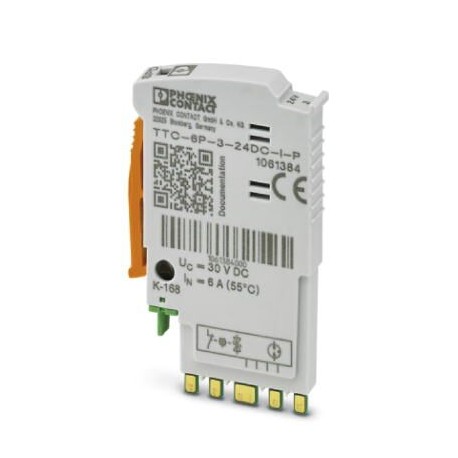

Surge protection plug with integrated status indicator on the module for a 3-wire floating signal circuit with a high nominal current. Nominal voltage: 24 V DC

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 1061384 Danh mục: Trabtech (TT) Thẻ: 1061384, PHOENIX_CONTACT, TTC-6P-3-24DC-I-P

Mô tả

Key Commercial Data

Orderkey	1061384
Packing unit	1
Catalog page	Page 143 (C-4-2019)
GTIN	4055626715650
Custom tariff number	85363010

Drawings
Ambient conditions
Protective circuit
Standards and Regulations
Classifications

Dimensions
General
Connection data
Environmental Product Compliance

Drawings


Dimensional drawing		Pictogram

Circuit diagram

Dimensions

Height	39 mm
Width	6.2 mm +0.1 mm
Depth	60.3 mm

Ambient conditions

Ambient temperature (operation)	-40 °C … 85 °C
Ambient temperature (storage/transport)	-40 °C … 85 °C
Permissible humidity (operation)	5 % … 95 %
Altitude	≤ 4000 m (amsl (above mean sea level))
Degree of protection	IP20 (When plugged in)

General

Housing material	PBT
Flammability rating according to UL 94	V-0
Color	light grey RAL 7035
Mounting type	on base element
Type	Male
Direction of action	Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground

Protective circuit

Nominal voltage U_N	24 V DC
Maximum continuous voltage U_C	30 V DC
Rated current	5 A (55 °C)

Connection data

Connection method	pluggable

Standards and Regulations

Standards/specifications	IEC 61643-21 2000 + corrigendum 2001 + A1:2008, modified + A2:2012
	EN 61643-21 2001 + A1:2009 + A2:2013

Environmental Product Compliance

REACh SVHC
	Lead 7439-92-1
China RoHS	Environmentally Friendly Use Period = 50
	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration”

Classifications

[email protected]

[email protected] 10.0.1	27130890
[email protected] 8.0	27130890
[email protected] 9.0	27130890

ETIM

ETIM 5.0	EC002496
ETIM 6.0	EC002496
ETIM 7.0	EC002496

Drawings
Ambient conditions
Protective circuit
Standards and Regulations
Classifications

Dimensions
General
Connection data
Environmental Product Compliance

Drawings


Dimensional drawing		Pictogram

Circuit diagram

Ambient conditions

Ambient temperature (operation)	-40 °C … 85 °C
Ambient temperature (storage/transport)	-40 °C … 85 °C
Permissible humidity (operation)	5 % … 95 %
Altitude	≤ 4000 m (amsl (above mean sea level))
Degree of protection	IP20 (When plugged in)
