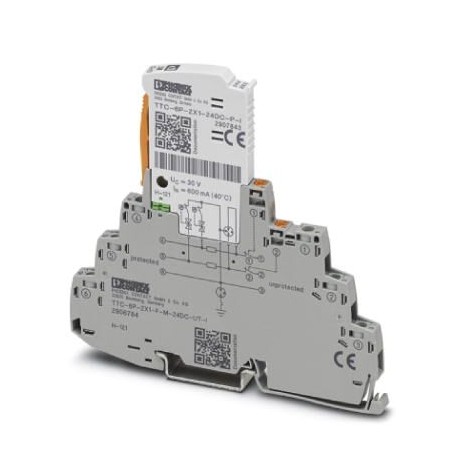

TTC-6P-2X1-F-M-24DC-UT-I 2906784 PHOENIX CONTACT Surge protection, consisting of protective plug and base el..
TTC-6P-2X1-F-M-24DC-UT-I 2906784 PHOENIX CONTACT Surge protection, consisting of protective plug and base el..
Surge protection, consisting of protective plug and base element, with integrated status indicator and disconnect knife for two signal wires with common reference potential, e.g., Digital IN/OUT. Indirect grounding via gas-filled surge arrester.
Liên hệ:
Key Commercial Data
| Orderkey | 2906784 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 129 (C-4-2019) |
| GTIN | 4055626135410 |
| Weight per Piece (excluding packing) | 40.000 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Permissible humidity (operation) | 5 % … 95 % |
| Altitude | ≤ 4000 m (amsl (above mean sea level)) |
| Degree of protection | IP20 |
General
| Housing material | PBT |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | traffic grey A RAL 7042 |
| light grey RAL 7035 | |
| Mounting type | DIN rail: TH 35 – 7.5 mm |
| Type | DIN rail module, two-section, divisible |
| Direction of action | Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground |
Protective circuit
| IEC test classification | C1 |
|---|---|
| C2 | |
| C3 | |
| D1 | |
| Nominal voltage UN | 24 V DC |
| Maximum continuous voltage UC | 30 V DC |
| 21 V AC | |
| Rated current | 600 mA (56 °C) |
| Operating effective current ICat UC | ≤ 5 µA |
| Residual current IPE | ≤ 1 µA |
| Nominal discharge current In(8/20) µs (line-earth) | 5 kA |
| Nominal discharge current In(8/20) µs (line-signal ground) | 5 kA |
| Pulse discharge current Iimp(10/350) µs (line-earth) | 0.5 kA |
| Pulse discharge current Iimp(10/350) µs (line-signalground) | 0.5 kA |
| Total discharge current Itotal(8/20) µs | 10 kA |
| Voltage protection level Up(line-earth) | ≤ 750 V (C1 – 1 kV/500 A) |
| ≤ 800 V (C2 – 10 kV / 5 kA) | |
| ≤ 1.1 kV (C3 – 25 A) | |
| ≤ 1.15 kV (C3 – 100 A) | |
| Voltage protection level Up(line-signalground) | ≤ 140 V (C1 – 1 kV/500 A) |
| ≤ 190 V (C2 – 10 kV / 5 kA) | |
| ≤ 45 V (C3 – 25 A) | |
| ≤ 50 V (C3 – 100 A) | |
| Voltage protection level Upstatic (line-earth) | ≤ 750 V (C1 – 1 kV/500 A) |
| ≤ 800 V (C2 – 10 kV / 5 kA) | |
| Voltage protection level Upstatic (line-signalground) | ≤ 55 V (C1 – 1 kV/500 A) |
| ≤ 120 V (C2 – 10 kV / 5 kA) | |
| Response time tA(line-signalground) | ≤ 1 ns |
| Response time tA(line-earth) | ≤ 100 ns |
| Input attenuation aE, asym. | typ. 0.3 dB (≤ 270 kHz/150 Ω) |
| Cut-off frequency fg (3 dB), asym. (GND) in 150 Ohm system | typ. 960 kHz |
| Capacity (line-signalground) | typ. 2.2 nF |
| Resistance per path | 1.65 Ω ±20 % |
| Max. required back-up fuse | 630 mA (FF) |
| Impulse durability (line-earth) | C1 – 1 kV / 500 A |
| C2 – 10 kV / 5 kA | |
| C3 – 100 A | |
| D1 – 500 A | |
| Impulse durability (line-signalground) | C1 – 1 kV / 500 A |
| C2 – 10 kV / 5 kA | |
| C3 – 100 A | |
| D1 – 500 A | |
| Pulse reset time (line-earth) | ≤ 30 ms |
| Pulse reset time (line-signalground) | ≤ 300 ms |
Connection data
| Connection method | Screw connection |
|---|---|
| Screw thread | M3 |
| Tightening torque | 0.5 Nm … 0.6 Nm |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section AWG | 24 … 12 |
Standards and Regulations
| Standards/specifications | IEC 61643-21 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 |
|---|---|
| EN 61643-21 2001 + A1:2009 + A2:2013 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 4.0 | 27140201 |
|---|---|
| [email protected] 4.1 | 27130801 |
| [email protected] 5.0 | 27130801 |
| [email protected] 5.1 | 27130801 |
| [email protected] 6.0 | 27130800 |
| [email protected] 7.0 | 27130807 |
| [email protected] 8.0 | 27130807 |
| [email protected] 9.0 | 27130807 |
ETIM
| ETIM 2.0 | EC000943 |
|---|---|
| ETIM 3.0 | EC000943 |
| ETIM 4.0 | EC000943 |
| ETIM 5.0 | EC000943 |
| ETIM 6.0 | EC000943 |
| ETIM 7.0 | EC000943 |
