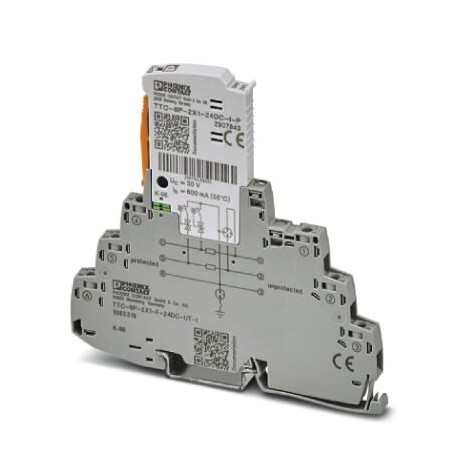

TTC-6P-2X1-F-24DC-UT-I 1065319 PHOENIX CONTACT Surge protection, consisting of protective plug and base elem..

Surge protection, consisting of protective plug and base element, with integrated status indicator for two signal wires with common reference potential, e.g., Digital IN/OUT. Indirect grounding via gas-filled surge arrester.

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 1065319 Danh mục: Trabtech (TT) Thẻ: 1065319, PHOENIX_CONTACT, TTC-6P-2X1-F-24DC-UT-I

Mô tả

Key Commercial Data

Orderkey	1065319
Packing unit	1 pc
Catalog page	Page 129 (C-4-2019)
GTIN	4055626726052
Weight per Piece (excluding packing)	0.000 g
Custom tariff number	85363010
Country of origin	DE (Germany)

Drawings
Ambient conditions
Protective circuit
Connection data
Environmental Product Compliance

Dimensions
General
Additional technical data
Standards and Regulations
Classifications

Drawings


Diagram		Dimensional drawing

Pictogram		Circuit diagram

Dimensions

Height	105.8 mm
Width	6.2 mm +0.1 mm
Depth	100 mm (incl. DIN rail 7.5 mm)

Ambient conditions

Ambient temperature (operation)	-40 °C … 85 °C
Ambient temperature (storage/transport)	-40 °C … 85 °C
Permissible humidity (operation)	5 % … 95 %
Altitude	≤ 4000 m (amsl (above mean sea level))
Degree of protection	IP20

General

Housing material	PBT
Flammability rating according to UL 94	V-0
Color	traffic grey A RAL 7042
	light grey RAL 7035
Mounting type	DIN rail: TH 35 – 7.5 mm
Type	DIN rail module, two-section, divisible
Direction of action	Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground

Protective circuit

IEC test classification	C1
	C2
	C3
	D1
Nominal voltage U_N	24 V DC
Maximum continuous voltage U_C	30 V DC
	21 V AC
Rated current	600 mA (56 °C)
Operating effective current I_Cat U_C	≤ 5 µA
Residual current I_PE	≤ 1 µA
Nominal discharge current I_n(8/20) µs (line-earth)	5 kA
Nominal discharge current I_n(8/20) µs (line-signal ground)	5 kA
Pulse discharge current I_imp(10/350) µs (line-earth)	0.5 kA
Pulse discharge current I_imp(10/350) µs (line-signalground)	0.5 kA
Total discharge current I_total(8/20) µs	10 kA
Voltage protection level U_p(line-earth)	≤ 750 V (C1 – 1 kV/500 A)
	≤ 800 V (C2 – 10 kV / 5 kA)
	≤ 1.1 kV (C3 – 25 A)
	≤ 1.15 kV (C3 – 100 A)
Voltage protection level U_p(line-signalground)	≤ 140 V (C1 – 1 kV/500 A)
	≤ 190 V (C2 – 10 kV / 5 kA)
	≤ 45 V (C3 – 25 A)
	≤ 50 V (C3 – 100 A)
Voltage protection level U_pstatic (line-earth)	≤ 750 V (C1 – 1 kV/500 A)
	≤ 800 V (C2 – 10 kV / 5 kA)
Voltage protection level U_pstatic (line-signalground)	≤ 55 V (C1 – 1 kV/500 A)
	≤ 120 V (C2 – 10 kV / 5 kA)
Response time t_A(line-signalground)	≤ 1 ns
Response time t_A(line-earth)	≤ 100 ns
Input attenuation aE, asym.	typ. 0.3 dB (≤ 270 kHz/150 Ω)
Cut-off frequency fg (3 dB), asym. (GND) in 150 Ohm system	typ. 960 kHz
Capacity (line-signalground)	typ. 2.2 nF
Resistance per path	1.65 Ω ±20 %
Max. required back-up fuse	630 mA (FF)
Impulse durability (line-earth)	C1 – 1 kV / 500 A
	C2 – 10 kV / 5 kA
	C3 – 100 A
	D1 – 500 A
Impulse durability (line-signalground)	C1 – 1 kV / 500 A
	C2 – 10 kV / 5 kA
	C3 – 100 A
	D1 – 500 A
Pulse reset time (line-earth)	≤ 30 ms
Pulse reset time (line-signalground)	≤ 300 ms

Additional technical data

Max. total discharge current I_{total max}(8/20) µs	20 kA (1x)

Connection data

Connection method	Screw connection
Screw thread	M3
Tightening torque	0.5 Nm … 0.6 Nm
Stripping length	8 mm
Conductor cross section flexible	0.2 mm² … 2.5 mm²
Conductor cross section solid	0.2 mm² … 4 mm²
Conductor cross section AWG	24 … 12

Standards and Regulations

Standards/specifications	IEC 61643-21 2000 + corrigendum 2001 + A1:2008, modified + A2:2012
	EN 61643-21 2001 + A1:2009 + A2:2013

Environmental Product Compliance

REACh SVHC
	Lead 7439-92-1
China RoHS	Environmentally Friendly Use Period = 50
	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration”

Classifications

[email protected]

[email protected] 6.0	27130800
[email protected] 7.0	27130807
[email protected] 8.0	27130807
[email protected] 9.0	27130807

ETIM

ETIM 5.0	EC000943
ETIM 6.0	EC000943
ETIM 7.0	EC000943
