TTC-6-2XTVSD-24DC-PT/50 1106198 PHOENIX CONTACT Fine surge protection for two signal wires with common refer..
TTC-6-2XTVSD-24DC-PT/50 1106198 PHOENIX CONTACT Fine surge protection for two signal wires with common refer..

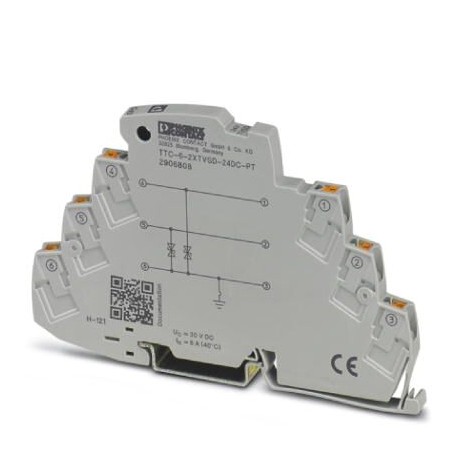

Fine surge protection for two signal wires with common reference potential.
Liên hệ:
Key Commercial Data
| Orderkey | 1106198 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626997964 |
| Custom tariff number | 85363010 |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Permissible humidity (operation) | 5 % … 95 % |
| Altitude | ≤ 4000 m (amsl (above mean sea level)) |
| Degree of protection | IP20 |
General
| Housing material | PBT |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | traffic grey A RAL 7042 |
| Mounting type | DIN rail: TH 35 – 7.5 mm |
| Type | DIN rail module, one-piece |
| Direction of action | Line-Earth Ground |
Protective circuit
| IEC test classification | C1 |
|---|---|
| C3 | |
| Nominal voltage UN | 24 V DC |
| Maximum continuous voltage UC | 30 V DC |
| 21 V AC | |
| Rated current | 6 A (55 °C) |
| Residual current IPE | ≤ 10 µA |
| Nominal discharge current In(8/20) µs (line-earth) | 0.5 kA |
| Total discharge current Itotal(8/20) µs | 1 kA |
| Voltage protection level Up(line-earth) | ≤ 60 V (C1 – 1 kV/500 A) |
| ≤ 45 V (C3 – 25 A) | |
| ≤ 50 V (C3 – 100 A) | |
| Response time tA(line-earth) | ≤ 1 ns |
| Input attenuation aE, asym. | typ. 0.3 dB (≤ 300 kHz / 150 Ω) |
| Cut-off frequency fg (3 dB), asym. (PE) in 150 Ohm system | typ. 960 kHz |
| Capacity (line-earth) | typ. 2.2 nF |
| Resistance per path | ≤ 100 mΩ |
| Max. required back-up fuse | 6.3 A (FF) |
| Impulse durability (line-earth) | C1 – 1 kV / 500 A |
| C3 – 100 A |
Connection data
| Connection method | Push-in connection |
|---|---|
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section AWG | 24 … 12 |
Standards and Regulations
| Standards/specifications | IEC 61643-21 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 |
|---|---|
| EN 61643-21 2001 + A1:2009 + A2:2013 |
Classifications
