Key Commercial Data
| Orderkey | 2788090 |
|---|---|
| Packing unit | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 109 (TT-2009) |
| GTIN | 4017918071332 |
| Weight per Piece (excluding packing) | 24.510 g |
| Custom tariff number | 85363010 |
| Country of origin | GR (Greece) |
General
| Housing material | PA |
|---|---|
| Flammability rating according to UL 94 | V-2 |
| Color | black |
| Standards for cearances and creepage distances | VDE 0110-1 |
| Mounting type | DIN rail: 35 mm |

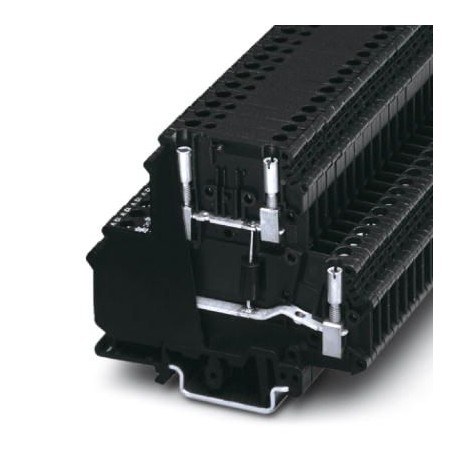

| Type | Double-level terminal block |
| Direction of action | Line-Line |
Protective circuit
| IEC test classification | C3 |
|---|---|
| VDE requirement class | C3 |
| Nominal voltage UN | 24 V DC |
| Maximum continuous voltage UC | 28 V DC |
| 20 V AC | |
| Rated current | 16 A |
| Operating effective current ICat UC | ≤ 5 µA |
| Nominal discharge current In(8/20) µs (line-line) | 169 A |
| Total discharge current Itotal(8/20) µs | 169 A |
| Max. discharge current Imax(8/20) µs maximum (line-line) | 169 A |
| Nominal pulse current Ian (10/1000) µs (line-line) | 33 A |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 40 V |
| Residual voltage at In(line-line) | ≤ 55 V |
| Response time tA(line-line) | ≤ 1 ns |
| Cut-off frequency fg (3 dB), sym. in 150 Ohm system | typ. 1.2 MHz |
| Capacity (line-line) | ≤ 1.6 nF (typical) |
| Surge protection fault message | none |
| Impulse durability (line-line) | C3 – 25 A |
Connection data
| Connection method | Screw connection |
|---|---|
| Connection method IN | Screw terminal blocks |
| Connection method OUT | Screw terminal blocks |
| Screw thread | M3 |
| Tightening torque | 0.8 Nm |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² … 4 mm² |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section AWG | 24 … 12 |
