Key Commercial Data
| Orderkey | 2859424 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 97 (C-6-2015) |
| GTIN | 4017918961763 |
| Weight per Piece (excluding packing) | 27.190 g |
| Custom tariff number | 85363030 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 80 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| Degree of protection | IP20 |
General
| Housing material | PA 6.6 |
|---|---|
| Flammability rating according to UL 94 | V-2 |
| Color | sky blue RAL 5015 |
| Standards for cearances and creepage distances | EN 60079-11 |
| Mounting type | DIN rail: 35 mm |

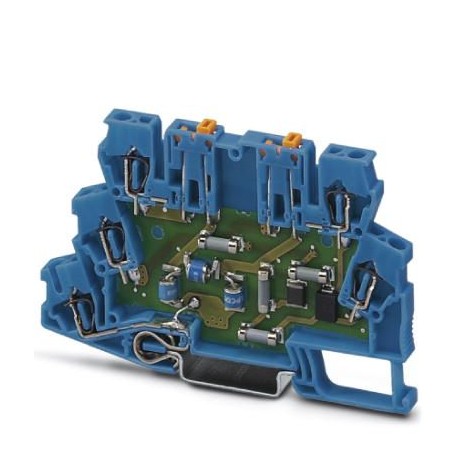

| Type | Double-level terminal block with disconnect knife |
| Direction of action | Line-Line & Line-Earth Ground |
Protective circuit
| IEC test classification | C1 |
|---|---|
| C2 | |
| C3 | |
| D1 | |
| Nominal voltage UN | 24 V DC |
| Maximum continuous voltage UC | 30 V DC |
| 21 V AC | |
| Rated current | 200 mA (40 °C) |
| Operating effective current ICat UC | ≤ 10 µA |
| Residual current IPE | ≤ 2 µA |
| Nominal discharge current In(8/20) µs (line-line) | 5 kA |
| Nominal discharge current In(8/20) µs (line-earth) | 10 kA (in total) |
| Pulse discharge current Iimp(10/350) µs (line-line) | 1 kA |
| Pulse discharge current Iimp(10/350) µs (line-earth) | 2 kA |
| Total discharge current Itotal(8/20) µs | 10 kA |
| Total discharge current Itotal(10/350) µs | 2 kA |
| Max. discharge current Imax(8/20) µs maximum (line-line) | 5 kA |
| Max. discharge current Imax(8/20) µs maximum (line-earth) | 10 kA (in total) |
| Nominal pulse current Ian (10/1000) µs (line-line) | 100 A |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 200 A (in total) |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 40 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 1.5 kV |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 40 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 1.5 kV |
| Residual voltage at In(line-line) | ≤ 40 V |
| Residual voltage with Ian (10/1000) µs (line-line) | ≤ 45 V |
| Voltage protection level Up(line-line) | ≤ 60 V (C2 – 10 kV / 5 kA) |
| Voltage protection level Up(line-earth) | ≤ 1.5 kV (C2 – 10 kV / 5 kA) |
| Response time tA(line-line) | ≤ 1 ns |
| Response time tA(line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | typ. 1 dB (≤ 400 kHz/50 Ω) |
| typ. 0.4 dB (≤ 150 kHz / 150 Ω) | |
| Cut-off frequency fg (3 dB), sym. in 50 Ohm system | typ. 3 MHz |
| Cut-off frequency fg (3 dB), sym. in 150 Ohm system | typ. 1 MHz |
| Resistance in series | 6.6 Ω ±20 % |
| Surge protection fault message | none |
| Max. required back-up fuse | 200 mA (T) |
| Impulse durability (line-line) | C2 – 10 kV/5 kA |
| Impulse durability (line-earth) | C2 – 10 kV/5 kA |
| D1 – 1 kA | |
| Alternating current carrying capacity (line-earth) | 2.5 A – 1 s |
Connection data
| Connection method | Spring-cage connection |
|---|---|
| Connection method IN | Spring-cage |
| Connection method OUT | Spring-cage |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.5 mm² … 2.5 mm² |
| Conductor cross section solid | 0.5 mm² … 4 mm² |
| Conductor cross section AWG | 24 … 14 |
