Key Commercial Data
| Orderkey | 2803865 |
|---|---|
| Packing unit | 14 pc |
| Catalog page | Page 95 (C-6-2015) |
| GTIN | 4046356310550 |
| Weight per Piece (excluding packing) | 34.000 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 80 °C |
|---|---|
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| Degree of protection | IP20 (with end cover) |
General
| Housing material | PA 6.6 |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | sky blue RAL 5015 |
| Mounting type | DIN rail: 35 mm |

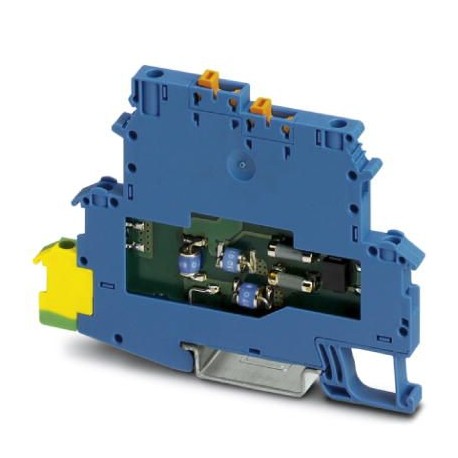

| Type | Double-level terminal block with PE foot – separate PE connection |
| Number of positions | 2 |
| Direction of action | Line-Line & Line-Earth Ground |
Protective circuit
| IEC test classification | C1 |
|---|---|
| C2 | |
| C3 | |
| D1 | |
| Nominal voltage UN | 24 V DC |
| Maximum continuous voltage UC | 30 V DC |
| 21 V AC | |
| Rated current | 250 mA (40 °C) |
| Operating effective current ICat UC | ≤ 5 µA |
| Residual current IPE | ≤ 1 µA |
| Nominal discharge current In(8/20) µs (line-line) | 5 kA |
| Nominal discharge current In(8/20) µs (line-earth) | 5 kA |
| Pulse discharge current Iimp(10/350) µs (line-earth) | 500 A |
| Total discharge current Itotal(8/20) µs | 10 kA |
| Nominal pulse current Ian (10/1000) µs (line-line) | 100 A |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 100 A |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 44 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 1.5 kV |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 44 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 1.5 kV |
| Residual voltage at In(line-line) | ≤ 40 V |
| Residual voltage at In(line-earth) | ≤ 110 V |
| Voltage protection level Up(line-line) | ≤ 70 V (C2 – 10 kV / 5 kA) |
| Voltage protection level Up(line-earth) | ≤ 1.5 kV (C2 – 10 kV / 5 kA) |
| Response time tA(line-line) | ≤ 1 ns |
| Response time tA(line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | typ. 1 dB (≤ 1 MHz / 50 Ω) |
| typ. 0.3 dB (≤ 200 kHz / 150 Ω) | |
| Cut-off frequency fg (3 dB), sym. in 50 Ohm system | typ. 6 MHz |
| Cut-off frequency fg (3 dB), sym. in 150 Ohm system | typ. 2 MHz |
| Resistance in series | 4.7 Ω ±20 % |
| Surge protection fault message | none |
| Max. required back-up fuse | 250 mA |
| Impulse durability (line-line) | C2 – 10 kV/5 kA |
| Impulse durability (line-earth) | C2 – 10 kV/5 kA |
| D1 – 500 A |
Connection data
| Connection method | Screw connection |
|---|---|
| Connection method IN | Screw terminal blocks |
| Connection method OUT | Screw terminal blocks |
| Screw thread | M3 |
| Tightening torque | 0.6 Nm |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section AWG | 24 … 14 |
