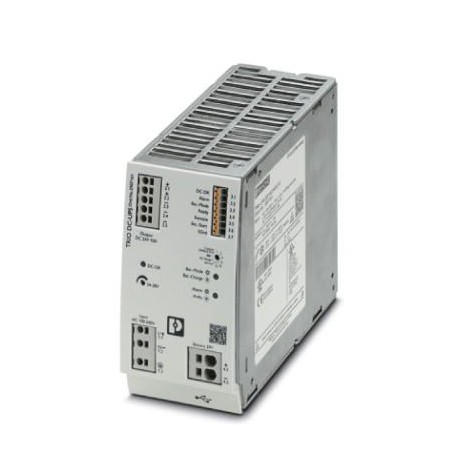

TRIO-UPS-2G/1AC/24DC/10 2907161 PHOENIX CONTACT Uninterruptible power supply with integrated power supply un..
TRIO-UPS-2G/1AC/24DC/10 2907161 PHOENIX CONTACT Uninterruptible power supply with integrated power supply un..
Uninterruptible power supply with integrated power supply unit. For lead AGM energy storage with 1.3 Ah to 38 Ah nominal capacity. Input: 1-phase, output: 24 V DC/10 A. Push-in connection technology
Liên hệ:
Key Commercial Data
| Orderkey | 2907161 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626166582 |
| Weight per Piece (excluding packing) | 1,700.000 g |
| Custom tariff number | 85044030 |
| Country of origin | CN (China) |
Dimensions
| Width | 68 mm |
|---|---|
| Height | 130 mm |
| Depth | 160 mm |
| Width with alternative assembly | 160 mm |
| Height with alternative assembly | 130 mm |
| Depth with alternative assembly | 68 mm |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C … 70 °C (> 60 °C Derating: 2.5 %/K) |
| Ambient temperature (start-up type tested) | -40 °C |
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Max. permissible relative humidity (operation) | ≤ 93 % (At +25°C, non-condensing) |
| Climatic class | 3K3 (in acc. with EN 60721) |
| Degree of pollution | 2 |
| Installation height | ≤ 4000 m (> 2000 m, observe derating) |
Input data
| AC input voltage range | 100 V AC … 240 V AC -15 % … +10 % |
|---|---|
| Inrush current limiting/I²t | < 0.2 A2s |
| Mains buffering | ≥ 25 ms (120 V AC) |
| Typical response time | 200 ms |
| Input fuse, integrated | 6.3 A (slow-blow, internal) |
Output data
| Nominal output voltage | 24 V DC |
|---|---|
| Setting range of the output voltage (USet) | 24 V DC … 28 V DC (> 24 V constant capacity) |
| Nominal output current (IN) | 10 A |
| Dynamic Boost (IDyn.Boost) | 15 A |
| Derating | > 60 °C (2.5%/K of POutnom.) |
| Control deviation | < 0.55 % (Static load change 10 % … 90 %) |
| Maximum power dissipation in no-load condition | < 3 W (230 V AC) |
| Efficiency | typ. 90 % (120 V AC) |
| typ. 91 % (230 V AC) | |
| typ. 96 % (Battery operation) | |
| Residual ripple | < 20 mV |
| Connection in parallel | yes, with diode module uncoupled |
| Surge protection against internal surge voltages | < 30 V DC |
| Feedback resistance | ≤ 35 V DC |
General
| Net weight | 1.34 kg |
|---|---|
| Insulation voltage input/output | 4 kV AC (type test) |
| 2 kV AC (routine test) | |
| Protection class | I |
| MTBF (IEC 61709, SN 29500) | > 2007013 h (230 V AC, at 25 °C) |
| > 1210518 h (230 V AC, at 40 °C) | |
| > 575978 h (230 V AC, at 60 °C) | |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Assembly instructions | alignable: horizontally 0 mm, vertically 50 mm |
