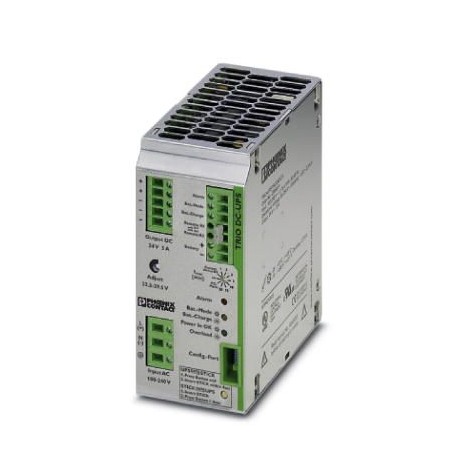

Key Commercial Data
| Orderkey | 2866611 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 300 (C-4-2017) |
| GTIN | 4046356311809 |
| Weight per Piece (excluding packing) | 1,147.000 g |
| Custom tariff number | 85044030 |
| Country of origin | CN (China) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C … 70 °C (> 55° C derating : 2.5%/K) |
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Max. permissible relative humidity (operation) | 95 % (at 25 °C, non-condensing) |
| Climatic class | 3K3 (in acc. with EN 60721) |
| Degree of pollution | 2 |
Input data
| Nominal input voltage range | 100 V AC … 240 V AC |
|---|---|
| AC input voltage range | 85 V AC … 264 V AC (Derating < 90 V AC: 2.5%V) |
| Input voltage range DC | 100 V DC … 350 V DC (UL508: 100 … 250 V) |
| Buffer time | adjustable: 0.5 min; 1 min; 2 min; 3 min; 5 min; 10 min; 15 min; 20 min; PC-Mode |
| Current consumption | 1.1 A (230 V AC, maximum) |
| 1.8 A (120 V AC, maximum) | |
| Inrush current limiting/I²t | < 1.3 A2s |
| Mains buffering | see diagram |
| Typical response time | 150 ms (230 V AC) |
| 200 ms (120 V AC) | |
| Power factor (cos phi) | approx. 0.5 |
| Protective circuit | Transient surge protection Varistor |
| Input fuse, integrated | 6.3 A (slow-blow, internal) |
Output data
| Nominal output voltage | 24 V DC |
|---|---|
| Setting range of the output voltage (USet) | 22.5 V DC … 29.5 V DC (Network operation; in the buffer mode, dependent on the battery voltage of 27.9 V DC … 19.2 V DC) |
| Nominal output current (IN) | 5 A (-25 °C … 55 °C) |
| Derating | 55 °C … 70 °C (2.5%/K) |
| Output current limit | max. 6 A (Mains operation) |
| Control deviation | < 1 % (change in load, static 10 % … 90 %) |
| Efficiency | > 88 % (230 V AC, network operation) |
| > 86 % (120 V AC, network operation) | |
| > 86 % (Battery operation) | |
| Residual ripple | < 10 mVPP |
| Peak switching voltages nominal load | < 25 mVPP |
| Connection in parallel | Yes, 2 |
| Surge protection against internal surge voltages | < 35 V DC |
| Feedback resistance | 35 V DC |
General
| IQ technology | no |
|---|---|
| Net weight | 1.1 kg |
| Memory medium | External, battery 1.3 Ah / 3.4 Ah / 7.2 Ah / 12 Ah |
| Operating mode | |
| Insulation voltage input/output | 4 kV (type test) |
| 2 kV (routine test) | |
| Protection class | I |
| MTBF (IEC 61709, SN 29500) | |
| > 596000 h (40 °C) | |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Assembly instructions | alignable: horizontally 0 mm, vertically 50 mm |
