TPM090STW-10/200111201 S00122 1090373 PHOENIX CONTACT Maritime-Touch panel with 22.9 cm/9″ TFT-display (anal..
TPM090STW-10/200111201 S00122 1090373 PHOENIX CONTACT Maritime-Touch panel with 22.9 cm/9″ TFT-display (anal..

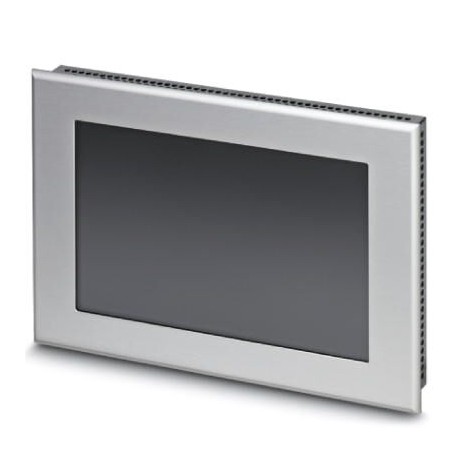

Maritime-Touch panel with 22.9 cm/9″ TFT-display (analog resistive (polyester)), 800 x 480 pixel(s) (WVGA), 16.7 million colors, Arm
Liên hệ:
Key Commercial Data
| Orderkey | 1090373 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626898285 |
| Custom tariff number | 84714100 |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Dimensions
| Outer dimensions: width, height, depth | 260 mm x 172 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 252 mm x 164 mm x 54 mm (Mounting cutout, depth with bus if bus system present in the device) |
Display
| Display | 22.9 cm/9″ TFT |
|---|---|
| Screen resolution | 800 x 480 Pixel(s) (WVGA) |
| Touch technology | analog resistive (polyester) |
| Brightness | 800 cd/m², typical (adjustable) |
| Backlighting | LED |
| Display backlight MTBF | 70000 h |
| Colors | 16.7 million colors |
| Reading angle left | 85 ° |
| Reading angle right | 85 ° |
| Reading angle top | 85 ° |
| Reading angle bottom | 85 ° |
Computer data
| Processor | Arm®Cortex®-A8, 1000 MHz |
|---|---|
| Operating system | Windows®Embedded Compact 7 |
| User software | Visu+ |
| RAM | 512 MB LPDDR RAM |
| 1 MB SRAM | |
| Mass storage | NAND-Flash, 1 GB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB Host 2.0 |
| Bus system | without |
| Slots | 1x SD |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Front cover | Aluminum (black anodized) |
|---|---|
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 1400 g |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| Ambient temperature (operation) | 0 °C … 55 °C |
| Ambient temperature (storage/transport) | -25 °C … 70 °C (Front aluminum, black anodized) |
| Permissible humidity (operation) | 20 % … 85 % (non-condensing) |
| Permissible humidity (storage/transport) | 20 % … 85 % (non-condensing) |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 1g, according to EN 60068-2-6 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 15; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 5.1 | 27330200 |
|---|---|
| [email protected] 6.0 | 27242300 |
| [email protected] 7.0 | 27242302 |
| [email protected] 8.0 | 27242302 |
| [email protected] 9.0 | 27330201 |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Computer data
| Processor | Arm®Cortex®-A8, 1000 MHz |
|---|---|
| Operating system | Windows®Embedded Compact 7 |
| User software | Visu+ |
| RAM | 512 MB LPDDR RAM |
| 1 MB SRAM | |
| Mass storage | NAND-Flash, 1 GB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB Host 2.0 |
| Bus system | without |
| Slots | 1x SD |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
