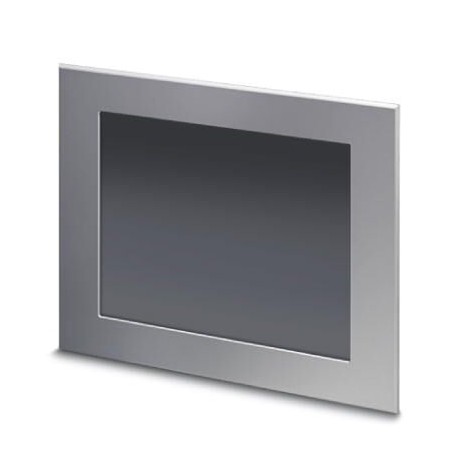

TPE150ZGX/800230024 S00063 2401267 PHOENIX CONTACT Rugged-Touch panel with 38.1 cm/15″ TFT-display (Analog r..
TPE150ZGX/800230024 S00063 2401267 PHOENIX CONTACT Rugged-Touch panel with 38.1 cm/15″ TFT-display (Analog r..
Rugged-Touch panel with 38.1 cm/15″ TFT-display (Analog resistive (GFG)), 1024 x 768 Pixel(s) (XGA), 262144 colors, Intel
Liên hệ:
Dimensions
| Outer dimensions: width, height, depth | 416 mm x 325 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 382 mm x 291 mm x 110 mm (Mounting cutout, depth with bus if bus system present in the device) |
Display
| Display | 38.1 cm/15″ TFT |
|---|---|
| Screen resolution | 1024 x 768 Pixel(s) (XGA) |
| Touch technology | Analog resistive (GFG) |
| Brightness | 480 cd/m² typical (adjustable) |
| Backlighting | LED |
| Display backlight MTBF | 50000 h |
| Colors | 262144 colors |
| Reading angle left | 80 ° |
| Reading angle right | 80 ° |
| Reading angle top | 65 ° |
| Reading angle bottom | 80 ° |
Computer data
| Processor | Intel®Atom®E680T 1.6 GHz |
|---|---|
| Operating system | Windows®CE 6.0 |
| User software | Open platform |
| RAM | 2 GB DDR2 SDRAM |
| Mass storage | SATA DOM SSD (SLC), 8 GB |
| Network | 1x Ethernet (10/100/1000 Mbps), RJ45 |
| Interfaces | 4x USB Host 2.0 |
| Bus system | without |
| Slots | 1x SD |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Material front plate | Aluminum (natural anodized) |
|---|---|
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Bolt fixing |
| Weight | 3400 g |
Ambient conditions
| Degree of protection | IP67 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | -20 °C … 60 °C |
| Ambient temperature (storage/transport) | -30 °C … 80 °C |
| Permissible humidity (operation) | 5 % … 95 % (Front) |
| 20 % … 85 % (On the rear) | |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 1g, according to EN 60068-2-6 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 15; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 5.1 | 27330200 |
|---|---|
| [email protected] 6.0 | 27242300 |
| [email protected] 7.0 | 27242302 |
| [email protected] 8.0 | 27242302 |
| [email protected] 9.0 | 27330201 |
Dimensions
| Outer dimensions: width, height, depth | 416 mm x 325 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 382 mm x 291 mm x 110 mm (Mounting cutout, depth with bus if bus system present in the device) |
