Key Commercial Data
| Orderkey | 2401233 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626095806 |
| Weight per Piece (excluding packing) | 1,000.000 g |
| Custom tariff number | 84714100 |
| Country of origin | DE (Germany) |
Dimensions
| External dimension, width | 234 mm |
|---|---|
| External dimension, height | 174 mm |
| External dimension, depth | 5 mm |
| Note regarding external dimension | Dimensions of the front plate |
| Installation dimension, width | 200 mm |
| Installation dimension, height | 140 mm |
| Installation dimension, depth | 65 mm |
| Note regarding installation dimension | Mounting cutout, depth with bus if bus system present in the device |
Display

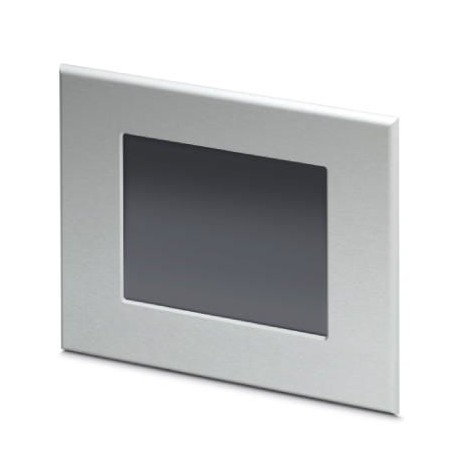

| Display | 17.8 cm/7″ TFT |
|---|---|
| Brightness | 350 cd/m², typical (adjustable) |
| Screen resolution | 800 x 480 Pixel(s) (WVGA) |
| Backlighting | LED |
| Display backlight MTBF | 40000 h |
| Touch technology | Analog resistive (GFG) |
| Colors | 65536 colors |
| Reading angle left | 70 ° |
| Reading angle right | 70 ° |
| Reading angle top | 65 ° |
| Reading angle bottom | 65 ° |
Computer data
| Processor | Arm9™, 184 MHz |
|---|---|
| Operating system | Windows®CE 5.0 |
| User software | TSvisRT |
| TSDiag | |
| RAM | 128 MB SDRAM |
| 512 KB SRAM | |
| Mass storage | NOR-Flash, 64 MB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB host 2.0 |
| Bus system | without |
| Optional interfaces | none |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Material front plate | Aluminum (natural anodized) |
|---|---|
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Bolt fixing |
| Weight | 1000 g |
Ambient conditions
| Degree of protection | IP67 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | -20 °C … 60 °C |
| Ambient temperature (storage/transport) | -30 °C … 80 °C |
| Permissible humidity (operation) | 5 % … 95 % (Front) |
| 20 % … 85 % (On the rear) | |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
