TP43AT/703000 S00001 2401066 PHOENIX CONTACT Touch Panel with 10.92 cm / 4.3 inch-TFT-Screen (analog resisti..
TP43AT/703000 S00001 2401066 PHOENIX CONTACT Touch Panel with 10.92 cm / 4.3 inch-TFT-Screen (analog resisti..

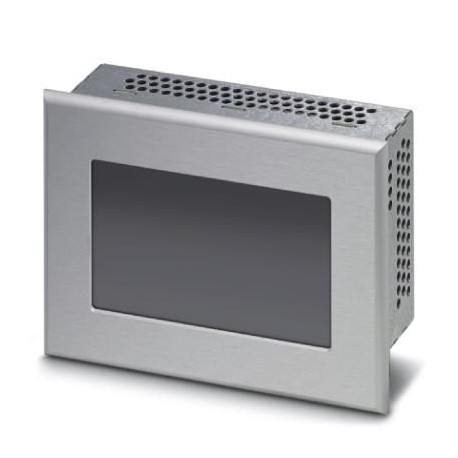

Touch Panel with 10.92 cm / 4.3 inch-TFT-Screen (analog resistive (polyester)), 480 x 272 Pixel, 65536 colors, ARM9™, 200 MHz, 2x USB Host 2.0 1x Ethernet (10/100 Mbit/s), RJ45 Windows CE 5.0, and user Software: TSvisRT. (System bus: no)
Liên hệ:
Dimensions
| External dimension Width | 140 mm |
|---|---|
| Outside dimension Height | 100 mm |
| Outside dimension Depth | 5 mm |
| Indication of the external dimension | Dimensions of the front plate |
| Measure the mounting Width | 132 mm |
| Measure mounting Height | 92 mm |
| Measure mounting Depth | 54 mm |
| Indication about the extent of assembly | Section mounting, depth with the bus in case there is a bus system in the device |
Screen
| Display | 10,92 cm / 4,3″TFT- |
|---|---|
| Brightness | 385 cd/m2 typically (adjustable) |
| Resolution of the screen | 480 x 272 Pixel(s) (WQVGA) |
| Background lighting | LED |
| Backlight MTBF | 40000 h |
| Touch Technology | analog-resistive (polyester) |
| Colors | 65536 colors |
| Untoangle of reading left | 75 ° |
| Untoangle reading right | 75 ° |
| Untoangle to read up | 63 ° |
| Untoangle reading below | 75 ° |
Data computer
| Processor | Arm9™, 200 MHz |
|---|---|
| Operating system | Windows®CE 5.0 |
| Software user | TSvisRT |
| Main memory | 128 MB SDRAM |
| 512 KB SRAM | |
| Data memory | NOR-Flash, 64 MB |
| Network | 1x Ethernet (10/100 Mbit/s), RJ45 |
| Interfaces | 2x USB Host 2.0 |
| System bus | without |
| Optional Interfaces | none |
| Real-time clock | Yes |
| Battery life | 5 years (typ.) |
Overview
| Material of the front plate | Aluminium (natural anodized) |
|---|---|
| Material housing | Galvanised steel plate |
| Mounting type | Front mounting |
| Weight | 590 g |
