Key Commercial Data
| Orderkey | 2401057 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626096704 |
| Weight per Piece (excluding packing) | 590.000 g |
| Custom tariff number | 84714100 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Dimensions
| External dimension, width | 140 mm |
|---|---|
| External dimension, height | 100 mm |
| External dimension, depth | 5 mm |
| Note regarding external dimension | Dimensions of the front plate |
| Installation dimension, width | 132 mm |
| Installation dimension, height | 92 mm |
| Installation dimension, depth | 54 mm |
| Note regarding installation dimension | Mounting cutout, depth with bus if bus system present in the device |

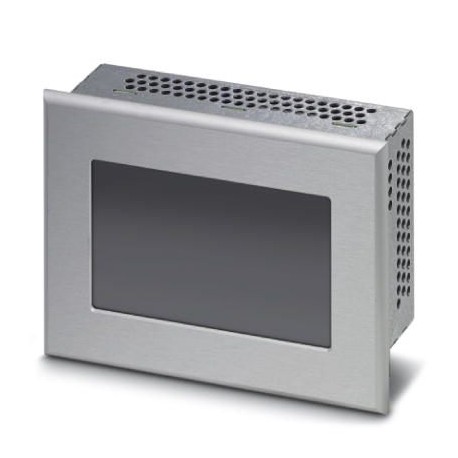

Display
| Display | 10,92 cm / 4,3″-TFT |
|---|---|
| Brightness | 385 cd/m² typical (adjustable) |
| Screen resolution | 480 x 272 Pixel(s) (WQVGA) |
| Backlighting | LED |
| Display backlight MTBF | 40000 h |
| Touch technology | analog resistive (polyester) |
| Colors | 65536 colors |
| Reading angle left | 75 ° |
| Reading angle right | 75 ° |
| Reading angle top | 63 ° |
| Reading angle bottom | 75 ° |
Computer data
| Processor | Arm9™, 200 MHz |
|---|---|
| Operating system | Windows®CE 5.0 |
| User software | TSvisRT |
| RAM | 64 MB SDRAM |
| 512 KB SRAM | |
| Mass storage | NOR-Flash, 32 MB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB host 2.0 |
| Bus system | without |
| Optional interfaces | none |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Material front plate | Aluminum (natural anodized) |
|---|---|
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 590 g |
