TP35AM/743000 S00008 2401040 PHOENIX CONTACT Touch panel with 8,9 cm / 3,5″-FSTN-display (analog resistive (..
TP35AM/743000 S00008 2401040 PHOENIX CONTACT Touch panel with 8,9 cm / 3,5″-FSTN-display (analog resistive (..

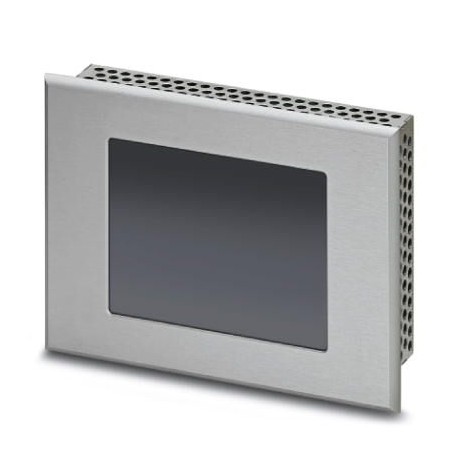

Touch panel with 8,9 cm / 3,5″-FSTN-display (analog resistive (polyester)), 320 x 240 Pixel(s) (QVGA), 256-step grayscale, Arm9™, 200 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 5.0 and user software: Open platform. (bus system: CAN)
Liên hệ:
Observation
| Restriction of use | EMC: class A product, see manufacturer’s declaration in the download center |
|---|
Dimensions
| External dimension Width, Height, Depth | 120 mm x 90 mm x 5 mm (Dimensions of front plate) |
|---|---|
| Installation dimension, Width, Height, Depth | 112 mm x 82 mm x 47 mm (Section of mounting depth with the bus in case there is a bus system in the device) |
Screen
| Display | 8,9 cm / 3,5″-FSTN |
|---|---|
| Resolution of the screen | 320 x 240 Pixel(s) (QVGA) |
| Touch Technology | analog-resistive (polyester) |
| Brightness | 350 cd/m2 typical (adjustable) |
| Background lighting | LED |
| Backlight MTBF | 40000 h |
| Colors | 256 levels of gray |
| Untoangle of reading left | 75 ° |
| Untoangle reading right | 75 ° |
| Untoangle to read up | 55 ° |
| Untoangle reading below | 75 ° |
Data computer
| Processor | Arm9™, 200 MHz |
|---|---|
| Operating system | Windows®CE 5.0 |
| Software user | Open platform |
| Main memory | 128 MB SDRAM |
| 512 KB SRAM | |
| Data memory | NOR-Flash, 64 MB |
| Network | 1x Ethernet (10/100 Mbit/s), RJ45 |
| Interfaces | 2x USB Host 2.0 |
| System bus | CAN |
| Optional Interfaces | none |
| Real-time clock | Yes |
| Battery life | 5 years (typ.) |
Overview
| Material of the front plate | Aluminium (natural anodized) |
|---|---|
| Material housing | Galvanised steel plate |
| Mounting type | Front mounting |
| Weight | 1700 g |
Environmental conditions
| Index of protection | IP65 (front side), IP20 (rear side) |
|---|---|
| NEMA 4X | |
| Room temperature (service) | 0 °C … 50 °C |
| Ambient temperature (storage / transport) | -25 °C … 70 °C |
| Humidity of air permissible (service) | 20 % … 85 % |
| Vibration (service) | 1g according to en 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and specifications
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (service) | 1g according to en 60068-2-6 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 15 years; |
| You will find information about hazardous substances in the manufacturer’s declaration in the “Downloads”tab |
Ratings
[email protected]
| [email protected] 4.0 | Twenty seven million three hundred thirty thousand two hundred |
|---|---|
| [email protected] 4.1 | Twenty seven million three hundred thirty thousand two hundred |
| [email protected] 5.0 | Twenty seven million three hundred thirty thousand two hundred |
| [email protected] 5.1 | Twenty seven million three hundred thirty thousand two hundred |
| [email protected] 6.0 | Twenty seven million two hundred forty two thousand three hundred |
| [email protected] 7.0 | Twenty seven million two hundred forty two thousand three hundred two |
| [email protected] 8.0 | Twenty seven million two hundred forty two thousand three hundred two |
| [email protected] 9.0 | Twenty seven million three hundred thirty thousand two hundred one |
UNSPSC
| UNSPSC 13.2 | Forty three million two hundred eleven thousand nine hundred four |
|---|---|
| UNSPSC 18.0 | Forty three million two hundred eleven thousand nine hundred four |
| UNSPSC 19.0 | Forty three million two hundred eleven thousand nine hundred four |
| UNSPSC 20.0 | Forty three million two hundred eleven thousand nine hundred four |
| UNSPSC 21.0 | Forty three million two hundred eleven thousand nine hundred four |
Observation
| Restriction of use | EMC: class A product, see manufacturer’s declaration in the download center |
|---|
Data computer
| Processor | Arm9™, 200 MHz |
|---|---|
| Operating system | Windows®CE 5.0 |
| Software user | Open platform |
| Main memory | 128 MB SDRAM |
| 512 KB SRAM | |
| Data memory | NOR-Flash, 64 MB |
| Network | 1x Ethernet (10/100 Mbit/s), RJ45 |
| Interfaces | 2x USB Host 2.0 |
| System bus | CAN |
| Optional Interfaces | none |
| Real-time clock | Yes |
| Battery life | 5 years (typ.) |
