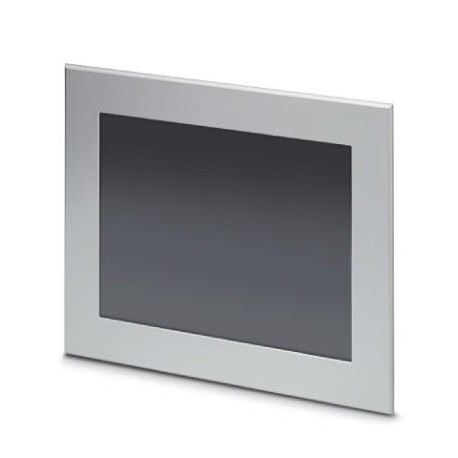

TP151AT/703000 S00043 2400959 PHOENIX CONTACT Touch panel with 38.1 cm/15″ TFT-display (analog resistive (po..
TP151AT/703000 S00043 2400959 PHOENIX CONTACT Touch panel with 38.1 cm/15″ TFT-display (analog resistive (po..
Touch panel with 38.1 cm/15″ TFT-display (analog resistive (polyester)), 1024 x 768 Pixel(s) (XGA), 65536 colors, Arm9™, 200 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 6.0 and user software: Open platform. (bus system: without)
Liên hệ:
Dimensions
| Outer dimensions: width, height, depth | 400 mm x 329 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 373 mm x 302 mm x 72 mm (Mounting cutout, depth with bus if bus system present in the device) |
Display
| Display | 38.1 cm/15″ TFT |
|---|---|
| Screen resolution | 1024 x 768 Pixel(s) (XGA) |
| Touch technology | analog resistive (polyester) |
| Brightness | 500 cd/m² typical (adjustable) |
| Backlighting | CCFL |
| Display backlight MTBF | 50000 h |
| Colors | 65536 colors |
| Reading angle left | 80 ° |
| Reading angle right | 80 ° |
| Reading angle top | 55 ° |
| Reading angle bottom | 80 ° |
Computer data
| Processor | Arm9™, 200 MHz |
|---|---|
| Operating system | Windows®CE 6.0 |
| User software | Open platform |
| RAM | 128 MB SDRAM |
| 512 KB SRAM | |
| Mass storage | NOR-Flash, 64 MB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB Host 2.0 |
| Bus system | without |
| Optional interfaces | none |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Material front plate | Aluminum (natural anodized) |
|---|---|
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 2300 g |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | 0 °C … 50 °C |
| Ambient temperature (storage/transport) | -25 °C … 70 °C |
| Permissible humidity (operation) | 20 % … 85 % |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 1g, according to EN 60068-2-6 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 15; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 4.0 | 27330200 |
|---|---|
| [email protected] 4.1 | 27330200 |
| [email protected] 5.0 | 27330200 |
| [email protected] 5.1 | 27330200 |
| [email protected] 6.0 | 27242300 |
| [email protected] 7.0 | 27242302 |
| [email protected] 8.0 | 27242302 |
| [email protected] 9.0 | 27330201 |
Dimensions
| Outer dimensions: width, height, depth | 400 mm x 329 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 373 mm x 302 mm x 72 mm (Mounting cutout, depth with bus if bus system present in the device) |
