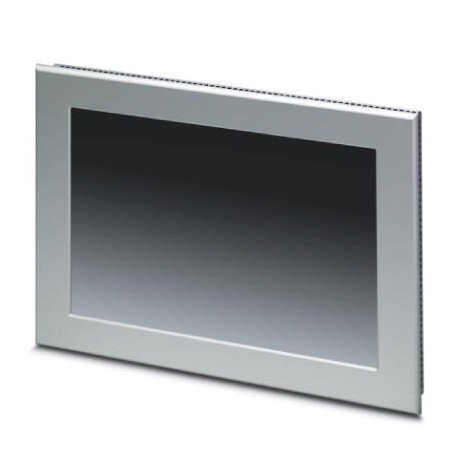

TP121STM/100110001 S00069 2400888 PHOENIX CONTACT Touch panel with 30.7 cm/12.1" TFT-display (analog resisti..

TP121STM/100110001 S00069 2400888 PHOENIX CONTACT Touch panel with 30.7 cm/12.1″ TFT-display (analog resisti..

TP121STM/100110001 S00069 2400888 PHOENIX CONTACT Touch panel with 30.7 cm/12.1″ TFT-display (analog resisti..

Touch panel with 30.7 cm/12.1″ TFT-display (analog resistive (polyester)), 1280 x 800 Pixel(s) (WXGA), 65536 colors, Arm

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 2400888 Danh mục: Control Systems (CST) Thẻ: 2400888, PHOENIX_CONTACT, TP121STM/100110001 S00069

Mô tả

Note
Display
General
Device supply
Environmental Product Compliance

Dimensions
Computer data
Ambient conditions
Standards and Regulations
Classifications

Note

Utilization restriction	EMC: class A product, see manufacturer’s declaration in the download area

Dimensions

Outer dimensions: width, height, depth	330 mm x 225 mm x 5 mm (Dimensions of the front plate)
Installation dimensions: width, height, depth	322 mm x 217 mm x 48 mm (Mounting cutout, depth with bus if bus system present in the device)

Display

Display	30.7 cm/12.1″ TFT
Screen resolution	1280 x 800 Pixel(s) (WXGA)
Touch technology	analog resistive (polyester)
Brightness	320 cd/m² typical (adjustable)
Backlighting	LED
Display backlight MTBF	50000 h
Colors	65536 colors
Reading angle left	88 °
Reading angle right	88 °
Reading angle top	88 °
Reading angle bottom	88 °

Computer data

Processor	Arm^®Cortex^®-A8, 800 MHz
Operating system	Windows^®Embedded Compact 7
User software	Open platform
RAM	512 MB LPDDR SDRAM
	1 MB SRAM
Mass storage	NAND-Flash, 1 GB
Network	1 x Ethernet (10/100 Mbps), RJ45
Interfaces	2x USB Host 2.0
Bus system	without
Slots	1x SD
Realtime clock	Yes
Service life of battery	5 years (typical)

General

Material front plate	Aluminum (natural anodized)
Housing material	Steel sheet, zinc-plated
Mounting type	Front installation
Weight	1700 g

Ambient conditions

Degree of protection	IP65 (front), IP20 (back)
	NEMA 4X
Ambient temperature (operation)	0 °C … 50 °C
Ambient temperature (storage/transport)	-25 °C … 70 °C
Permissible humidity (operation)	20 % … 85 %
Vibration (operation)	1g, according to EN 60068-2-6
Shock	15g, according to IEC 60068-2-27

Device supply

Typical current consumption	0.7 A
Power supply unit	24 V DC ±20 %

Standards and Regulations

Shock	15g, according to IEC 60068-2-27
Vibration (operation)	1g, according to EN 60068-2-6

Environmental Product Compliance

REACh SVHC	Lead 7439-92-1
China RoHS	Environmentally Friendly Use Period = 15;
	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration”

Classifications

[email protected]

[email protected] 4.0	27330200
[email protected] 4.1	27330200
[email protected] 5.0	27330200
[email protected] 5.1	27330200
[email protected] 6.0	27242300
[email protected] 7.0	27242302
[email protected] 8.0	27242302
[email protected] 9.0	27330201

ETIM

ETIM 4.0	EC001412
ETIM 5.0	EC001412
ETIM 6.0	EC001412
ETIM 7.0	EC001412

UNSPSC

UNSPSC 13.2	43211904
UNSPSC 18.0	43211904
UNSPSC 19.0	43211904
UNSPSC 20.0	43211904
UNSPSC 21.0	43211904
