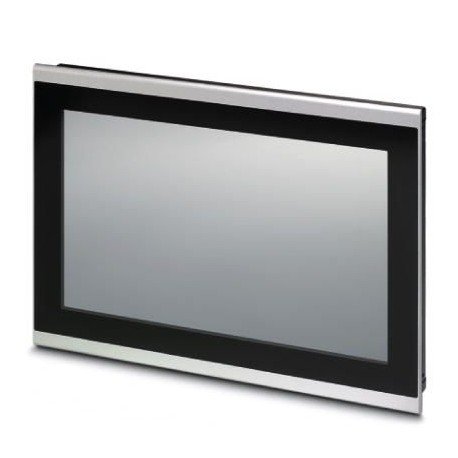

TP121SKM200114041 S00127 2401554 PHOENIX CONTACT Touch panel

TP121SKM200114041 S00127 2401554 PHOENIX CONTACT Touch panel

TP121SKM200114041 S00127 2401554 PHOENIX CONTACT Touch panel

Touch panel

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 2401554 Danh mục: Control Systems (CST) Thẻ: 2401554, PHOENIX_CONTACT, TP121SKM200114041 S00127

Mô tả

Key Commercial Data

Orderkey	2401554
Packing unit	1 pc
Note	Made to Order (non-returnable)
GTIN	4055626228891
Weight per Piece (excluding packing)	1,700.000 g
Custom tariff number	84714100
Country of origin	DE (Germany)

Note

Utilization restriction	EMC: class A product, see manufacturer’s declaration in the download area

Dimensions

External dimension, width	336 mm
External dimension, height	234 mm
External dimension, depth	6 mm
Note regarding external dimension	Dimensions of the front plate
Installation dimension, width	329 mm
Installation dimension, height	227 mm
Installation dimension, depth	53 mm
Note regarding installation dimension	Mounting cutout, depth with bus if bus system present in the device

Display

Display	30.7 cm/12.1″ TFT
Brightness	320 cd/m² typical (adjustable)
Screen resolution	1280 x 800 Pixel(s) (WXGA)
Backlighting	LED
Display backlight MTBF	50000 h
Touch technology	Projective-capacitive (PCAP)
Colors	65536 colors
Reading angle left	88 °
Reading angle right	88 °
Reading angle top	88 °
Reading angle bottom	88 °

Computer data

Processor	Arm^®Cortex^®-A8, 1000 MHz
Operating system	Windows^®Embedded Compact 7
User software	IniNet Browser
RAM	1 MB SRAM
	512 MB LPDDR SDRAM
Mass storage	NAND-Flash, 1 GB
Network	1 x Ethernet (10/100 Mbps), RJ45
Interfaces	2x USB host 2.0
Bus system	without
Slots	1x SD
Realtime clock	Yes
Service life of battery	5 years (typical)

General

Material front plate	Aluminum (natural anodized)
Housing material	Steel sheet, zinc-plated
Mounting type	Front installation
