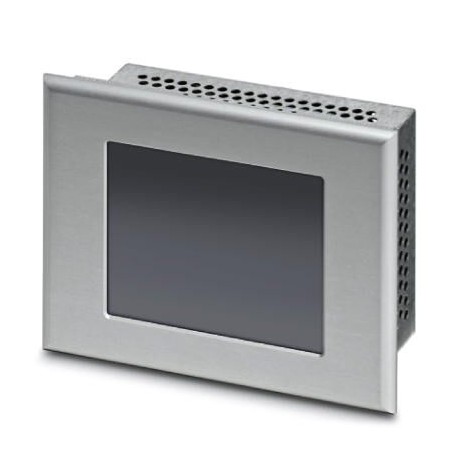

TP11AM/702001 S00008 2401393 PHOENIX CONTACT Touch panel with 9.7 cm / 3.8″-FSTN-display (analog resistive (..
TP11AM/702001 S00008 2401393 PHOENIX CONTACT Touch panel with 9.7 cm / 3.8″-FSTN-display (analog resistive (..
Touch panel with 9.7 cm / 3.8″-FSTN-display (analog resistive (polyester)), 320 x 240 Pixel(s) (QVGA), 5 grayscales, Arm9™, 200 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 5.0 and user software: Open platform. (bus system: without)
Liên hệ:
Touch panel with 9.7 cm / 3.8″-FSTN-display (analog resistive (polyester)), 320 x 240 Pixel(s) (QVGA), 5 grayscales, Arm9™, 200 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 5.0 and user software: Open platform. (bus system: without)
Key Commercial Data
| Orderkey | 2401393 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626148274 |
Dimensions
| Outer dimensions: width, height, depth | 130 mm x 96 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 122 mm x 88 mm x 45 mm (Mounting cutout, depth with bus if bus system present in the device) |
Display
| Display | 9.7 cm / 3.8″-FSTN |
|---|---|
| Screen resolution | 320 x 240 Pixel(s) (QVGA) |
| Touch technology | analog resistive (polyester) |
| Brightness | 90 cd/m² |
| Backlighting | LED |
| Display backlight MTBF | 30000 h |
| Colors | 5 grayscales |
| Reading angle left | 40 ° |
| Reading angle right | 40 ° |
| Reading angle top | 40 ° |
| Reading angle bottom | 40 ° |
Computer data
| Processor | Arm9™, 200 MHz |
|---|---|
| Operating system | Windows®CE 5.0 |
| User software | Open platform |
| RAM | 512 KB SRAM |
| Mass storage | NOR-Flash, 32 MB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB host 2.0 |
| Bus system | without |
| Optional interfaces | none |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Material front plate | Aluminum (natural anodized) |
|---|---|
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 680 g |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | 0 °C … 50 °C |
| Ambient temperature (storage/transport) | -25 °C … 70 °C |
| Permissible humidity (operation) | 20 % … 85 % |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
