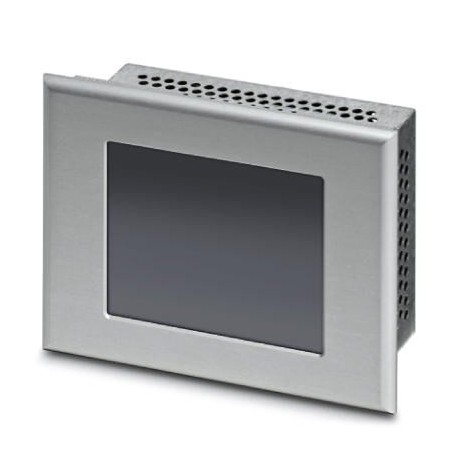

TP11AM/702001 S00007 2400861 PHOENIX CONTACT Touch panel with 9.7 cm/3.8″ FSTN-display (analog resistive (po..
TP11AM/702001 S00007 2400861 PHOENIX CONTACT Touch panel with 9.7 cm/3.8″ FSTN-display (analog resistive (po..
Touch panel with 9.7 cm/3.8″ FSTN-display (analog resistive (polyester)), 320 x 240 Pixel(s) (QVGA), 5 grayscales, Arm9™, 200 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 5.0 and user software: Open platform. (bus system: without)
Liên hệ:
Dimensions
| External dimension Width, Height, Depth | 130 mm x 96 mm x 5 mm (Dimensions of front plate) |
|---|---|
| Installation dimension, Width, Height, Depth | 122 mm x 88 mm x 45 mm (Section of mounting depth with the bus in case there is a bus system in the device) |
Screen
| Display | 9,7 cm / 3,8″, FSTN |
|---|---|
| Resolution of the screen | 320 x 240 Pixel(s) (QVGA) |
| Touch Technology | analog-resistive (polyester) |
| Brightness | 90 cd/m2 |
| Background lighting | LED |
| Backlight MTBF | 30000 h |
| Colors | 5 levels of gray |
| Untoangle of reading left | 40 ° |
| Untoangle reading right | 40 ° |
| Untoangle to read up | 40 ° |
| Untoangle reading below | 40 ° |
Data computer
| Processor | Arm9™, 200 MHz |
|---|---|
| Operating system | Windows®CE 5.0 |
| Software user | Open platform |
| Main memory | 64 MB SDRAM |
| 512 KB SRAM | |
| Data memory | NOR-Flash, 32 MB |
| Network | 1x Ethernet (10/100 Mbit/s), RJ45 |
| Interfaces | 2x USB Host 2.0 |
| System bus | without |
| Optional Interfaces | none |
| Real-time clock | Yes |
| Battery life | 5 years (typ.) |
Overview
| Material of the front plate | Aluminium (natural anodized) |
|---|---|
| Material housing | Galvanised steel plate |
| Mounting type | Front mounting |
| Weight | 680 g |
Environmental conditions
| Index of protection | IP65 (front side), IP20 (rear side) |
|---|---|
| NEMA 4X | |
| Room temperature (service) | 0 °C … 50 °C |
| Ambient temperature (storage / transport) | -25 °C … 70 °C |
| Humidity of air permissible (service) | 20 % … 85 % |
| Vibration (service) | 1g according to en 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and specifications
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (service) | 1g according to en 60068-2-6 |
Environmental Product Compliance
| China RoHS | Space of time for the intended use (FEUP): 15 years; |
|---|---|
| You will find information about hazardous substances in the manufacturer’s declaration in the “Downloads”tab |
Ratings
[email protected]
| [email protected] 4.0 | Twenty seven million three hundred thirty thousand two hundred |
|---|---|
| [email protected] 4.1 | Twenty seven million three hundred thirty thousand two hundred |
| [email protected] 5.0 | Twenty seven million three hundred thirty thousand two hundred |
| [email protected] 5.1 | Twenty seven million three hundred thirty thousand two hundred |
| [email protected] 6.0 | Twenty seven million two hundred forty two thousand three hundred |
| [email protected] 7.0 | Twenty seven million two hundred forty two thousand three hundred two |
| [email protected] 8.0 | Twenty seven million two hundred forty two thousand three hundred two |
| [email protected] 9.0 | Twenty seven million three hundred thirty thousand two hundred one |
Dimensions
| External dimension Width, Height, Depth | 130 mm x 96 mm x 5 mm (Dimensions of front plate) |
|---|---|
| Installation dimension, Width, Height, Depth | 122 mm x 88 mm x 45 mm (Section of mounting depth with the bus in case there is a bus system in the device) |
