TP105XIT-10/3051C240 S00018 2400832 PHOENIX CONTACT Touch panel with 26.4 cm/10.4″ TFT-display (analog resis..
TP105XIT-10/3051C240 S00018 2400832 PHOENIX CONTACT Touch panel with 26.4 cm/10.4″ TFT-display (analog resis..

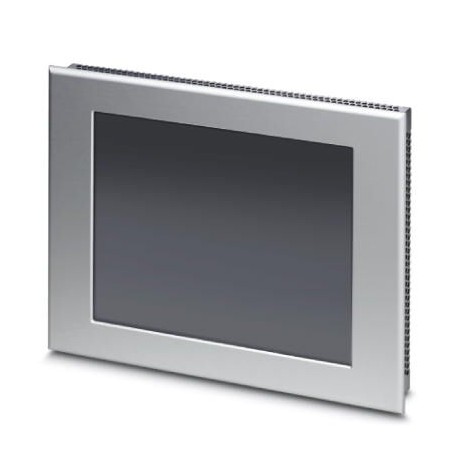

Touch panel with 26.4 cm/10.4″ TFT-display (analog resistive (polyester)), 800 x 600 Pixel(s) (SVGA), 262144 colors, XScale® PXA320, 806 MHz, 2x USB host 1.1, 1x COM (RS-232), 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 5.0 and user software: Open platform. (bus system: PROFIBUS MASTER)
Liên hệ:
Dimensions
| Outer dimensions: width, height, depth | 295 mm x 220 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 287 mm x 212 mm x 61 mm (Mounting cutout, depth with bus if bus system present in the device) |
Display
| Display | 26.4 cm/10.4″ TFT |
|---|---|
| Screen resolution | 800 x 600 Pixel(s) (SVGA) |
| Touch technology | analog resistive (polyester) |
| Brightness | 340 cd/m² typical (adjustable) |
| Backlighting | LED |
| Display backlight MTBF | 50000 h |
| Colors | 262144 colors |
| Reading angle left | 70 ° |
| Reading angle right | 70 ° |
| Reading angle top | 50 ° |
| Reading angle bottom | 60 ° |
Computer data
| Processor | XScale® PXA320, 806 MHz |
|---|---|
| Operating system | Windows®CE 5.0 |
| User software | Open platform |
| RAM | 128 MB SDRAM |
| 1 MB SRAM | |
| Mass storage | NAND-Flash, 1 GB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB host 1.1 |
| 1x COM (RS-232) | |
| Bus system | PROFIBUS MASTER |
| Optional interfaces | CF slot |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Material front plate | Aluminum (natural anodized) |
|---|---|
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 1900 g |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | 0 °C … 50 °C |
| Ambient temperature (storage/transport) | -25 °C … 70 °C |
| Permissible humidity (operation) | 20 % … 85 % |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 1g, according to EN 60068-2-6 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 15; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 4.0 | 27330200 |
|---|---|
| [email protected] 4.1 | 27330200 |
| [email protected] 5.0 | 27330200 |
| [email protected] 5.1 | 27330200 |
| [email protected] 6.0 | 27242300 |
| [email protected] 7.0 | 27242302 |
| [email protected] 8.0 | 27242302 |
| [email protected] 9.0 | 27330201 |
Dimensions
| Outer dimensions: width, height, depth | 295 mm x 220 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 287 mm x 212 mm x 61 mm (Mounting cutout, depth with bus if bus system present in the device) |
