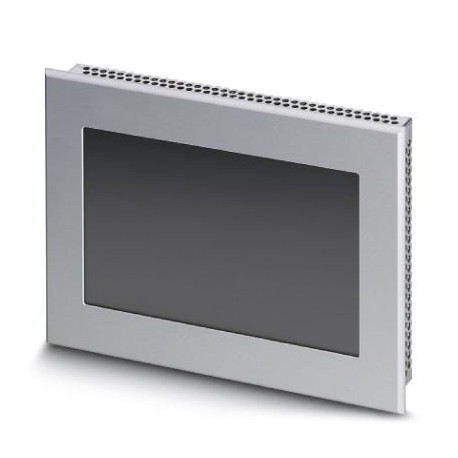

TP070STW/100630003 S00068 2400743 PHOENIX CONTACT Touch Panel with 17.8 cm / 7″-TFT-Screen (analog resistive..
TP070STW/100630003 S00068 2400743 PHOENIX CONTACT Touch Panel with 17.8 cm / 7″-TFT-Screen (analog resistive..
Touch Panel with 17.8 cm / 7″-TFT-Screen (analog resistive (polyester)), 800 x 480 Pixel (WVGA), 262144 colors, ARM®Cortex®-A8, 800 MHz, 2x Host USB 2.0, RS-232, RS-422/RS-485, 1x Ethernet (10/100 Mbit/s), RJ45, Windows®Embedded Compact 7, and user Software: Movicon™. (System bus: DualCAN)
Liên hệ:
Display
| Display | 17.8 cm/7″ TFT |
|---|---|
| Brightness | 350 cd/m², typical (adjustable) |
| Screen resolution | 800 x 480 Pixel(s) (WVGA) |
| Backlighting | LED |
| Display backlight MTBF | 40000 h |
| Touch technology | analog resistive (polyester) |
| Colors | 262144 colors |
| Reading angle left | 70 ° |
| Reading angle right | 70 ° |
| Reading angle top | 65 ° |
| Reading angle bottom | 65 ° |
Computer data
| Processor | Arm® Cortex®-A8, 800 MHz |
|---|---|
| Operating system | Windows® Embedded Compact 7 |
| User software | Movicon™ |
| RAM | 512 MB LPDDR SDRAM |
| Mass storage | NAND-Flash, 256 MB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB host 2.0 |
| 1x COM (RS-232) | |
| 1x COM (RS-422/485) | |
| Bus system | DualCAN |
| Slots | 1x SD |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Material front plate | Aluminum (natural anodized) |
|---|---|
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 800 g |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | 0 °C … 50 °C |
| Ambient temperature (storage/transport) | -25 °C … 70 °C |
| Permissible humidity (operation) | 20 % … 85 % |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
