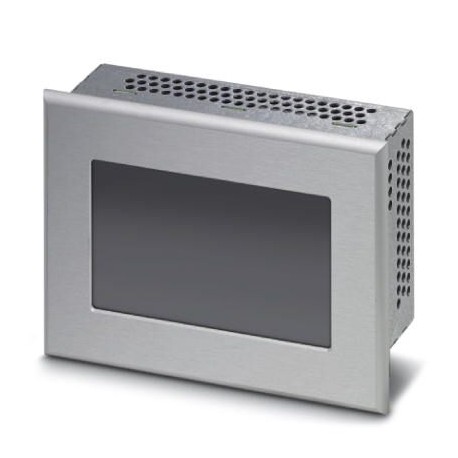

Touch panel with 10,92 cm / 4,3″-TFT-display (analog resistive (polyester)), 480 x 272 Pixel(s) (WQVGA), 262144 colors, Arm
Liên hệ:
Touch panel with 10,92 cm / 4,3″-TFT-display (analog resistive (polyester)), 480 x 272 Pixel(s) (WQVGA), 262144 colors, Arm®Cortex®-A8, 800 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows®Embedded Compact 7 and user software: TSvisIT. (bus system: DualCAN)
Key Commercial Data
| Orderkey | 2401680 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626431215 |
| Custom tariff number | 84714100 |
Dimensions
| Outer dimensions: width, height, depth | 140 mm x 100 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 132 mm x 92 mm x 42 mm (Mounting cutout, depth with bus if bus system present in the device) |
Display
| Display | 10,92 cm / 4,3″-TFT |
|---|---|
| Screen resolution | 480 x 272 Pixel(s) (WQVGA) |
| Touch technology | analog resistive (polyester) |
| Brightness | 385 cd/m² typical (adjustable) |
| Backlighting | LED |
| Display backlight MTBF | 40000 h |
| Colors | 262144 colors |
| Reading angle left | 75 ° |
| Reading angle right | 75 ° |
| Reading angle top | 63 ° |
| Reading angle bottom | 75 ° |
Computer data
| Processor | Arm®Cortex®-A8, 800 MHz |
|---|---|
| Operating system | Windows®Embedded Compact 7 |
| User software | TSvisIT |
| RAM | 512 MB LPDDR SDRAM |
| 1 MB SRAM | |
| Mass storage | NAND-Flash, 1 GB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB host 2.0 |
| Bus system | DualCAN |
| Slots | 1x SD |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Extras | Integrated acoustic signal (buzzer) |
|---|---|
| Material front plate | Aluminum (natural anodized) |
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 600 g |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | 0 °C … 50 °C |
| Ambient temperature (storage/transport) | -25 °C … 70 °C |
| Permissible humidity (operation) | 20 % … 85 % |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
