Key Commercial Data
| Orderkey | 2401617 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626297187 |
| Weight per Piece (excluding packing) | 600.000 g |
| Custom tariff number | 84714100 |
| Country of origin | DE (Germany) |
Dimensions
| External dimension, width | 140 mm |
|---|---|
| External dimension, height | 100 mm |
| External dimension, depth | 5 mm |
| Note regarding external dimension | Dimensions of the front plate |
| Installation dimension, width | 132 mm |
| Installation dimension, height | 92 mm |
| Installation dimension, depth | 42 mm |
| Note regarding installation dimension | Mounting cutout, depth with bus if bus system present in the device |
Display

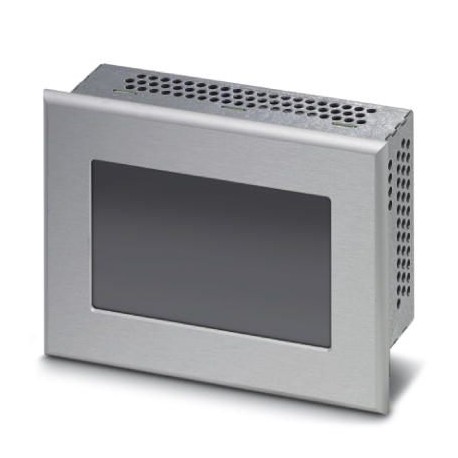

| Display | 10,92 cm / 4,3″-TFT |
|---|---|
| Brightness | 385 cd/m² typical (adjustable) |
| Screen resolution | 480 x 272 Pixel(s) (WQVGA) |
| Backlighting | LED |
| Display backlight MTBF | 40000 h |
| Touch technology | analog resistive (polyester) |
| Colors | 262144 colors |
| Reading angle left | 75 ° |
| Reading angle right | 75 ° |
| Reading angle top | 63 ° |
| Reading angle bottom | 75 ° |
Computer data
| Processor | Arm®Cortex®-A8, 800 MHz |
|---|---|
| Operating system | Windows®Embedded Compact 7 |
| User software | IniNet Browser |
| RAM | 512 MB LPDDR SDRAM |
| Mass storage | NAND-Flash, 256 MB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB host 2.0 |
| Bus system | without |
| Slots | 1x SD |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Material front plate | Aluminum (natural anodized) |
|---|---|
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 600 g |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | 0 °C … 50 °C |
| Ambient temperature (storage/transport) | -25 °C … 70 °C |
| Permissible humidity (operation) | 20 % … 85 % |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
