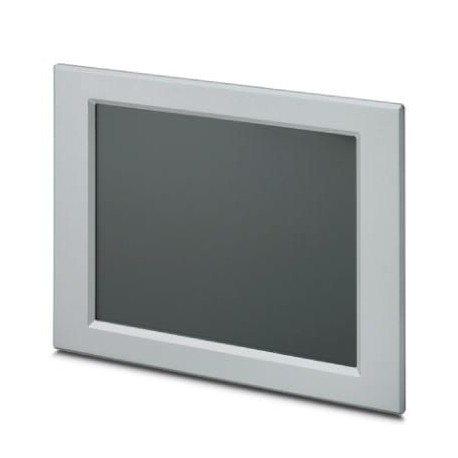

TP 5120S 2403105 PHOENIX CONTACT Touch Panel with 30,7 cm / 12,1″-TFT-Screen (analog resistive (polyester)),..
TP 5120S 2403105 PHOENIX CONTACT Touch Panel with 30,7 cm / 12,1″-TFT-Screen (analog resistive (polyester)),..
Touch Panel with 30,7 cm / 12,1″-TFT-Screen (analog resistive (polyester)), 800 x 600 Pixel (SVGA), 16.2 million colors, Intel®Atom™ N455 1.66 GHz, 4x USB 2.0, 1x COM (RS-232/422/485), 2x COM (RS-232), 2x Ethernet (10/100/1000 Mbit/s), RJ45, Windows®Embedded Compact 7, and user Software: Visu+ / AX OPC Server. (System bus: no)
Liên hệ:
Dimensions
| External dimension Width | 365 mm |
|---|---|
| Outside dimension Height | 282 mm |
| Outside dimension Depth | 55 mm |
| Measure the mounting Width | 334 mm |
| Measure mounting Height | 253 mm |
| Indication about the extent of assembly | Assembly section |
Screen
| Display | 30,7 cm / 12,1″-TFT |
|---|---|
| Brightness | 350 cd/m2 typical (adjustable) |
| Resolution of the screen | 800 x 600 Pixel(s) (SVGA) |
| Background lighting | LED |
| Backlight MTBF | > 50000 h |
| Touch Technology | analog-resistive (polyester) |
| Colors | 16.2 million colors |
Data computer
| Processor | Intel®Atom™ N455 1.66 GHz |
|---|---|
| Cooling | passive |
| Operating system | Windows®Embedded Compact 7 |
| Software user | Visu+ |
| AX OPC Server | |
| Main memory | 2 GB DDR3 SODIMM |
| Data memory | CompactFlash® 2 GB |
| Network | 2x Ethernet (10/100/1000 Mbit/s), RJ45 |
| Interfaces | 4x USB 2.0 |
| 1x COM (RS-232/422/485) | |
| 2x COM (RS-232) | |
| Monitor output | 1x VGA |
| System bus | without |
| Ports | no post plug-in |
| Real-time clock | yes (with backup battery) |
| Battery life | 5 years (typ.) |
Overview
| Material of the front plate | Aluminium die-casting |
|---|---|
| Mounting type | Mounting on front plate |
| Weight | 4.6 kg |
