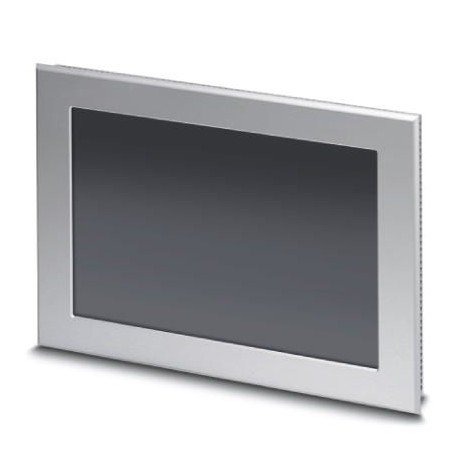

TP 3120W/WT-65 1029352 PHOENIX CONTACT Touch panel

TP 3120W/WT-65 1029352 PHOENIX CONTACT Touch panel

TP 3120W/WT-65 1029352 PHOENIX CONTACT Touch panel

Touch panel

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 1029352 Danh mục: Control Systems (CST) Thẻ: 1029352, PHOENIX_CONTACT, TP 3120W/WT-65

Mô tả

Key Commercial Data

Orderkey	1029352
Packing unit	1 pc
Note	Made to Order (non-returnable)
GTIN	4055626530352
Weight per Piece (excluding packing)	2,350.000 g
Custom tariff number	84714100
Country of origin	DE (Germany)

Dimensions

External dimension, width	347 mm
External dimension, height	241 mm
External dimension, depth	5 mm
Note regarding external dimension	Dimensions of the front plate
Installation dimension, width	322 mm
Installation dimension, height	217 mm
Installation dimension, depth	64 mm
Note regarding installation dimension	Mounting cutout, depth with bus if bus system present in the device

Display

Display	30.7 cm/12.1″ TFT
Brightness	320 cd/m² typical (adjustable)
Screen resolution	1280 x 800 Pixel(s) (WXGA)
Backlighting	LED
Display backlight MTBF	50000 h
Touch technology	Analog resistive (GFG)
Colors	65536 colors
Reading angle left	88 °
Reading angle right	88 °
Reading angle top	88 °
Reading angle bottom	88 °

Computer data

Processor	ARM^®Cortex^®-A8, 1000 MHz
Operating system	Windows^®Embedded Compact 7
User software	Visu+
RAM	512 MB LPDDR SDRAM
	1 MB SRAM
Mass storage	NAND-Flash, 1 GB
Network	1 x Ethernet (10/100 Mbps), RJ45
Interfaces	2x USB 2.0
Bus system	without
Slots	1x SD
Realtime clock	Yes
Service life of battery	5 years (typical)

General

Extras	Integrated acoustic signal (buzzer)
Material front plate	Aluminum (natural anodized)
Housing material	Steel sheet, zinc-plated
Mounting type	Front installation
Weight	2350 g

Ambient conditions

Degree of protection	IP65 (front), IP20 (back)
Ambient temperature (operation)	-20 °C … 70 °C
Ambient temperature (storage/transport)	-20 °C … 80 °C
Permissible humidity (operation)	5 % … 95 % (Front)
	20 % … 85 % (On the rear)
Vibration (operation)	1g, according to EN 60068-2-6
Shock	15g, according to IEC 60068-2-27
